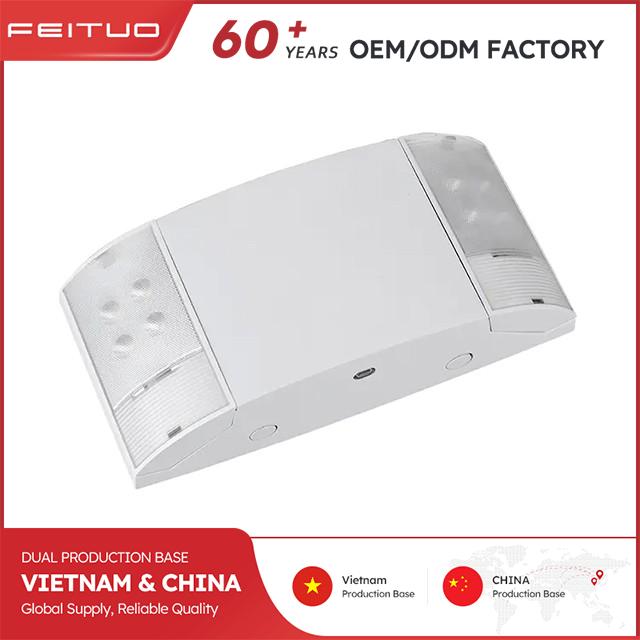

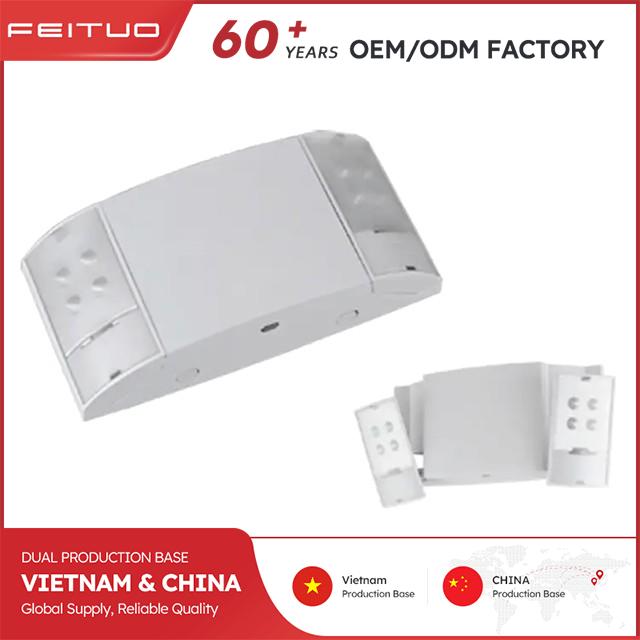

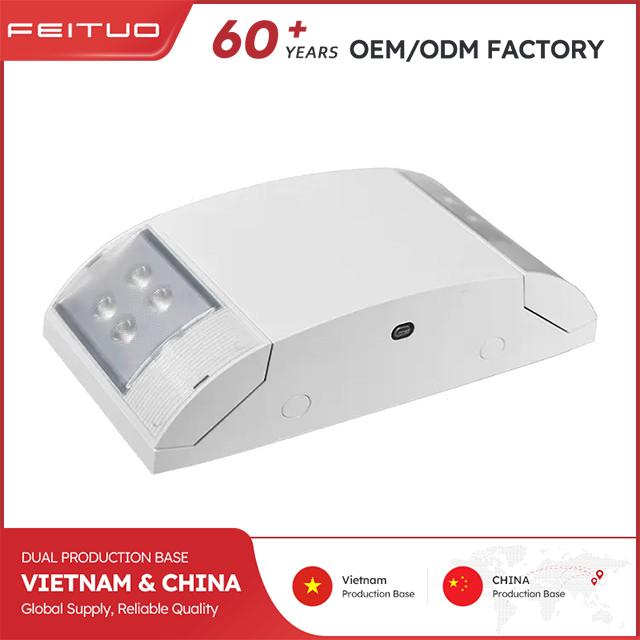

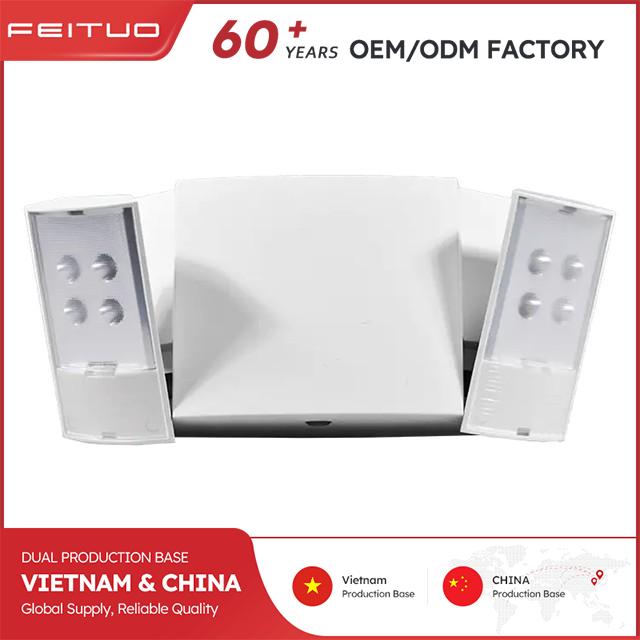

The emergency lights works on 120 to 277 VAC universal voltage operation. Long lasting, low maintenance NiCad battery. Product is UL Listed and meets NFPA 101, OSHA and UL 924 emergency codes. As a home, commercial and industrial lighting, perfect for hallway, corridor, hospital, apartments, churches, shopping malls, supermarkets, schools, hotel, pub, restaurant, warehouses, office building, etc.
SPEC SHEET
Features
Injection-molded thermoplastic ABS housing, UL 94V-0flame rating
Built-in 3.6V1000mAh Nickel cadmium battery for minimum90 minutes emergency operation
Innovative, easy installation in minutes
Suitable for wall mount applications
Universal J-box mounting pattern
120V-277VAC Dual voltage operation
2X 4PCS 3030 LED lamp heads for emergency mode
Luminous Flux: more than 200 LM
Maximum 24 hours for full recharge time
Test switch and charge indicator
UL and cULus listed
0° to 40°C indoor damp location listed
ILLUMINATION
Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chromeplated reflectors and polycarbonate lenses for optimal light distribution.

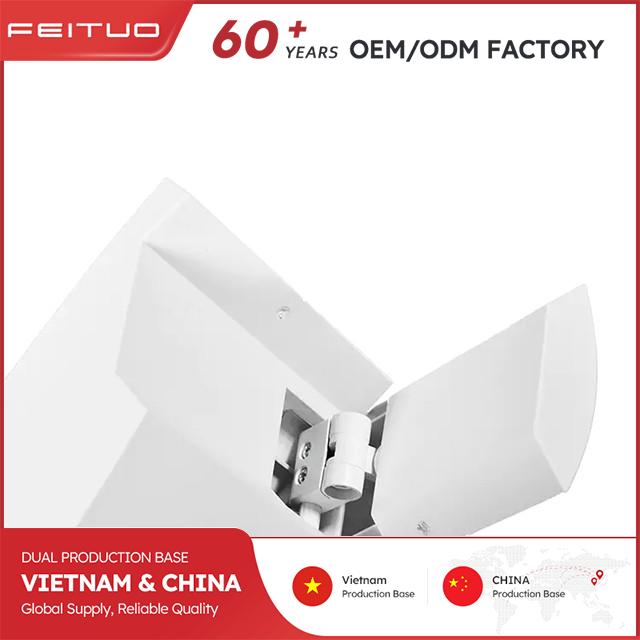

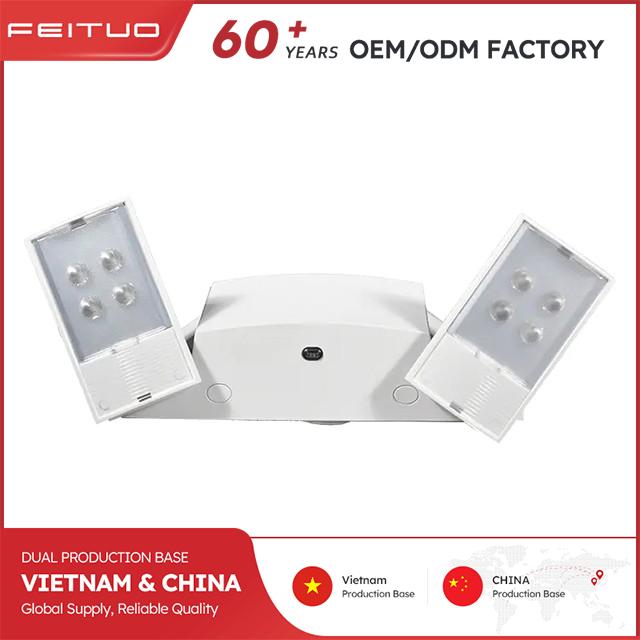

MULTI-ANGLE LIGHTING
Each side of the emergency light has bright adjustable floodlights on the sign for maximum visibility. 360° ratation, the flexibility of the light direction allows you to point the lights at almost a 90 degree angle.
EMERGENCY POWER BATTERY BACKUP

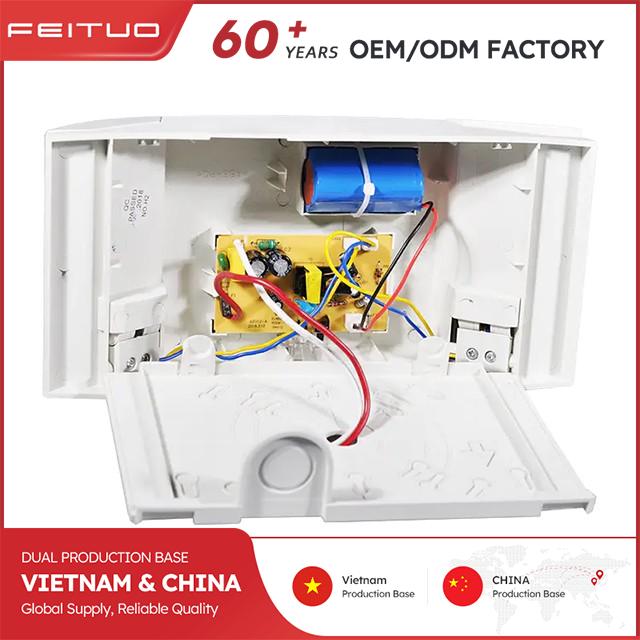

Emergency light built-in 3.6V 1000mAh Nickel cadmium backup battery, upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes.
EASY INSTALLATION IN MINUTES

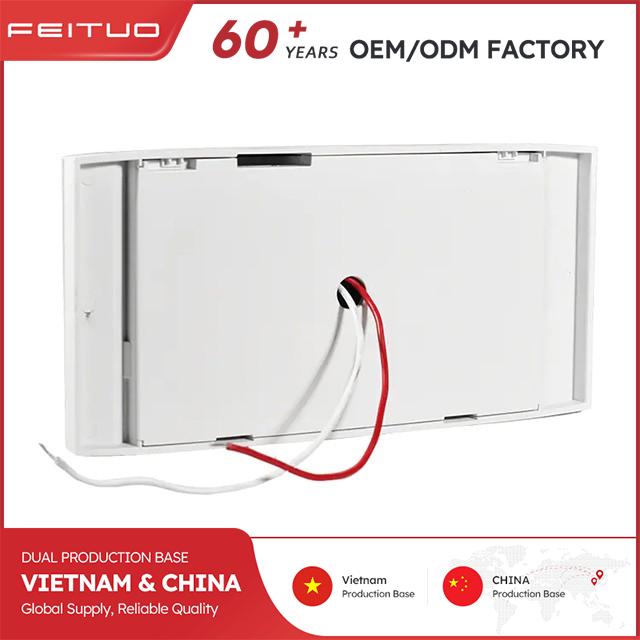

Can be wall or ceiling mounted, universal J-box mounting pattern. Test switch and status indicator let you know the emergency lights has power and the battery is working.
5 YEAR WARRANTY
Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.
Specifications
| Product Name: | ADJUSTABLE DUAL HEAD EMERGENCY LIGHT | Packing Information | |||
| Model No.: | JLEU12 | Packing: | White box | ||
| Main Specification: | 2X 4PCS 2835 LED, 90mins, Ni-cad 3.6V 1000mAh | Carton: | L (cm) | W (cm) | H (cm) |
| Carton Size: | 26.5 | 26 | 21 | ||
| Product Size: | Carton CBM: | 0.014M3 | |||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 6PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 3.5KGS | ||
| Remarks: UL & cUL Listed | Net Weight: | 2.5KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 11786 | 24643 | 28714 | |||
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
Product Comparison
| PRICTURE |  |  |  |  |  |  |  |  |
| MODEL NO | JLEU1 | JLEU3 | JLEU4 | JLEU5 | JLEU9 | JLEU10 | JLEU12 | JLEU15 |
| Item Weight | 2.65 lbs/1.2 kgs | 1.54 lbs/0.7 kgs | 1.54lbs/0.7 kgs | 1.32 lbs/0.6 kgs | 1.65 lbs/0.75 kgs | 0.66 lbs/0.3 kgs | 1.1 lbs/0.5 kgs | 0.88lbs/0.4 kgs |
| Inner Box Size | 16.22 x 5.63 x 4.49 inches | 13.66 x 4.72 x 3.62 inches | 12.13x 5.3 x 3.15 inches | 11.22 x 4.65 x 2.95 inches | 12.4 x 5.04 x 4.13 inches | 8.86 x 4.33 x 1.97 inches | 9.69 x 4.92 x 2.48 inches | 9.57 x 4.8 x 1.97 inches |
| 41.2 x 14.3 x 11.4 cm | 34.7 x 12 x 9.2 cm | 30.8 x 13.5 x 8 cm | 28.5 x 11.8 x 7.5 cm | 31.5 x 12.8 x 10.5 cm | 22.5 x 11 x 5 cm | 24.6 x 12.5 x 6.3 cm | 24.3 x 12.2 x 5 cm | |
| Color | White | White | White | White | White | White | White | White |
| Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Voltage | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120-277 Volts | 120-277 Volts |
| Battery | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-MH |
| Wattage | 3.5 watts | 2.4 watts | 3.6watts | 2.4 watts | 2.4 watts | 2 watts | 4.5 watts | 2watts |
| Type of Bulb | LED | LED | LED | LED | LED | LED | LED | LED |
| Mounting Type | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
| Certifications | UL listed | UL listed | UL listed | UL listed | UL listed | UL listed | UL listed | UL listed |
| Weather Ratings | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location |
| Carton Weight | 17.64 lbs/8 kgs | 11.02 lbs/5 kgs | 11.02lbs/5 kgs | 8.82 lbs/4 kgs | 11.46 lbs/5.2 kgs | 8.82 lbs/4 kgs | 7.72 lbs/3.5 kgs | 12.13lbs/5.5 kgs |
| Carton Size | 16.7 x 12.4 x 14.37 inches / 6pcs | 14.96 x 14.17 x 7.87 inches / 6pcs | 12.6x 11.8 x 10.24 inches/ 6pcs | 11.8 x 9.84 x 9.84 inches / 6pcs | 16 x 12.8 x 9.06 inches / 6pcs | 13.98 x 9.65 x 9.06 inches / 12pcs | 11.22 x 10.43 x 8.27 inches / 6pcs | 14.96x 10.04 x 8.86 inches/ 12pcs |
| 42.5 x 31.5 x 36.5 cm / 6pcs | 38 x 36 x 20 cm / 6pcs | 32 x 30 x 26 cm / 6pcs | 30 x 25 x 25 cm / 6pcs | 40.7 x 32.5 x 23 cm / 6pcs | 35.5 x 24.5 x 23 cm / 12pcs | 28.5 x 26.5 x 21 cm / 6pcs | 38 x 25.5 x 22.5 cm / 12pcs | |
| Charging Time | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours |
| Emergency Run Time | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins |
