2 sets of 10PCS 1W LEDs, providing up to 1200 lumens. Equipped with a 6V 5Ah lead acid battery for at least 90 minutes of emergency lighting, it recharges fully in 24 hours. It supports ceiling and wall mount installation with a universal J-box pattern.
JLEU6HO SPEC SHEET
Features
Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating.
Innovative, easy installation in minutes
Suitable for wall mount applications
Universal J-box mounting pattern
Maximum 24 hours for full recharge time
Test switch and charge indicator
120V-277VAC universal voltage operation

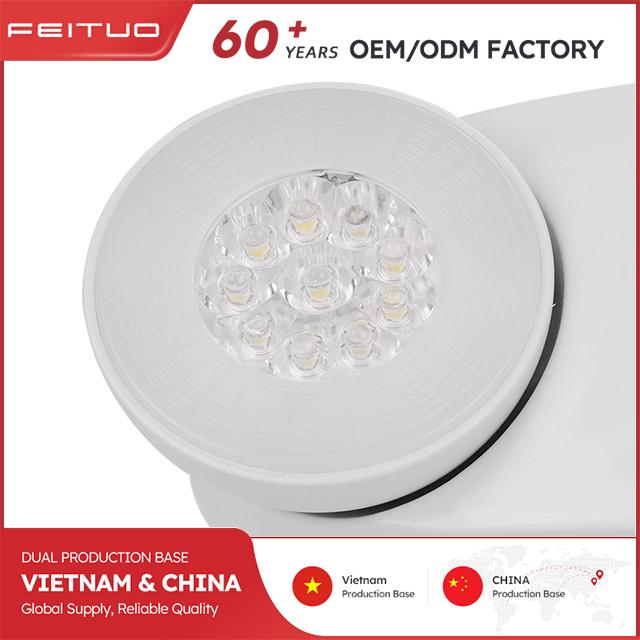

2*10PCS 1W LEDs, lamp heads for emergency mode

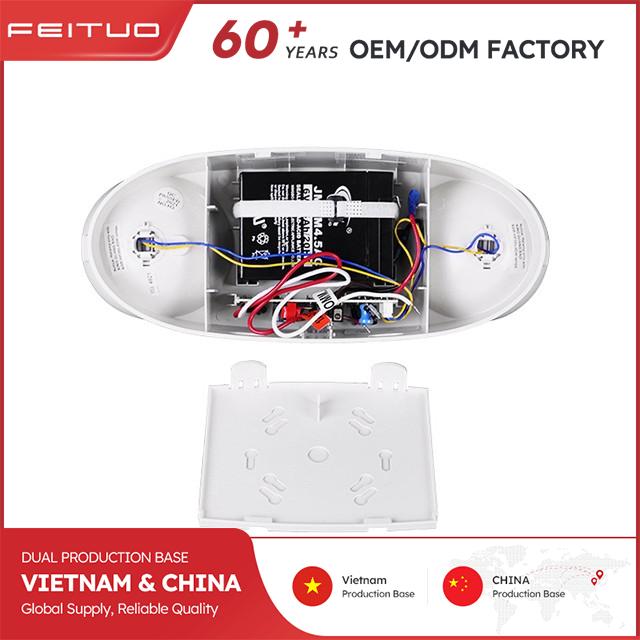

Built-in 6V 5Ah Lead Acid battery for minimum 90 minutes emergency operation.
0℃ to 40℃ indoor damp location listed.
ULTRA-HIGH BRIGHTNESS
2 sets of 10PCS 1W LEDs, providing up to 1200 lumens in emergency mode.
STRONG ENDURANCE
Built-in 6V 5Ah lead acid battery for at least 90 minutes of emergency lighting.
FAST RECHARGE
Full recharge in up to 24 hours, efficient and convenient.
VERSATILE INSTALLATION
Supports ceiling mount and wall mount with a universal J-box pattern.
SAFE AND DURABLE
ABS housing with UL 94V-0 flame rating, suitable for indoor damp locations from 0℃ to 40℃.
UNIVERSAL VOLTAGE
120V-277VAC dual voltage compatibility, adaptable to various electrical environments.
Specifications
| Product Name: | UL/cUL 1200LM High lumens output dual head LED emergency light | Packing Information | |||
| Model No.: | JLEU6-HO | Packing: | White box | ||
| Main Specification: | 2*10PCS 1W LEDs, 90mins, 6V 5AH Lead Acid battery, | Carton: | L (cm) | W (cm) | H (cm) |
| Carton Size: | 33.5 | 27.5 | 25 | ||
| Product Size: | 32x7.2x12.5cm | Carton CBM: | 0.023M3 | ||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 6PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 9.4KGS | ||
| Remarks: 1200LM output, UL pending | Net Weight: | 8.2KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 7174 | 15000 | 17478 | |||
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
Product Comparison
| PRICTURE |  |  |  |  |  |  |  |  |
| MODEL NO | JLEU1 | JLEU3 | JLEU4 | JLEU5 | JLEU9 | JLEU10 | JLEU12 | JLEU15 |
| Item Weight | 2.65 lbs/1.2 kgs | 1.54 lbs/0.7 kgs | 1.54lbs/0.7 kgs | 1.32 lbs/0.6 kgs | 1.65 lbs/0.75 kgs | 0.66 lbs/0.3 kgs | 1.1 lbs/0.5 kgs | 0.88lbs/0.4 kgs |
| Inner Box Size | 16.22 x 5.63 x 4.49 inches | 13.66 x 4.72 x 3.62 inches | 12.13x 5.3 x 3.15 inches | 11.22 x 4.65 x 2.95 inches | 12.4 x 5.04 x 4.13 inches | 8.86 x 4.33 x 1.97 inches | 9.69 x 4.92 x 2.48 inches | 9.57 x 4.8 x 1.97 inches |
| 41.2 x 14.3 x 11.4 cm | 34.7 x 12 x 9.2 cm | 30.8 x 13.5 x 8 cm | 28.5 x 11.8 x 7.5 cm | 31.5 x 12.8 x 10.5 cm | 22.5 x 11 x 5 cm | 24.6 x 12.5 x 6.3 cm | 24.3 x 12.2 x 5 cm | |
| Color | White | White | White | White | White | White | White | White |
| Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Voltage | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120/277 Volts | 120-277 Volts | 120-277 Volts |
| Battery | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-Cad | 3.6V 1000mAh Ni-MH |
| Wattage | 3.5 watts | 2.4 watts | 3.6watts | 2.4 watts | 2.4 watts | 2 watts | 4.5 watts | 2watts |
| Type of Bulb | LED | LED | LED | LED | LED | LED | LED | LED |
| Mounting Type | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
| Certifications | UL listed | UL listed | UL listed | UL listed | UL listed | UL listed | UL listed | UL listed |
| Weather Ratings | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location | Listed for damp location |
| Carton Weight | 17.64 lbs/8 kgs | 11.02 lbs/5 kgs | 11.02lbs/5 kgs | 8.82 lbs/4 kgs | 11.46 lbs/5.2 kgs | 8.82 lbs/4 kgs | 7.72 lbs/3.5 kgs | 12.13lbs/5.5 kgs |
| Carton Size | 16.7 x 12.4 x 14.37 inches / 6pcs | 14.96 x 14.17 x 7.87 inches / 6pcs | 12.6x 11.8 x 10.24 inches/ 6pcs | 11.8 x 9.84 x 9.84 inches / 6pcs | 16 x 12.8 x 9.06 inches / 6pcs | 13.98 x 9.65 x 9.06 inches / 12pcs | 11.22 x 10.43 x 8.27 inches / 6pcs | 14.96x 10.04 x 8.86 inches/ 12pcs |
| 42.5 x 31.5 x 36.5 cm / 6pcs | 38 x 36 x 20 cm / 6pcs | 32 x 30 x 26 cm / 6pcs | 30 x 25 x 25 cm / 6pcs | 40.7 x 32.5 x 23 cm / 6pcs | 35.5 x 24.5 x 23 cm / 12pcs | 28.5 x 26.5 x 21 cm / 6pcs | 38 x 25.5 x 22.5 cm / 12pcs | |
| Charging Time | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours |
| Emergency Run Time | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins | ≥90Mins |
