Home
Exit Sign
Fire Exit Sign

LED Exit Sign with Test Switch and Charge Display

LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
thumb LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display
LED Exit Sign with Test Switch and Charge Display

LED Exit Sign with Test Switch and Charge Display

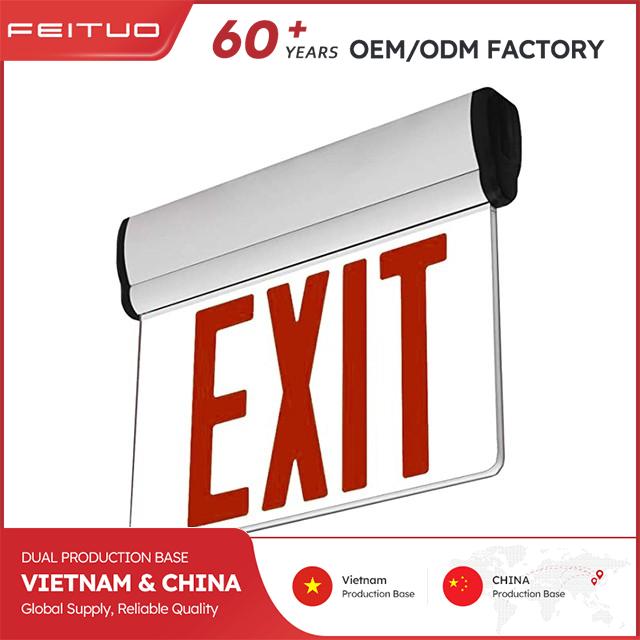

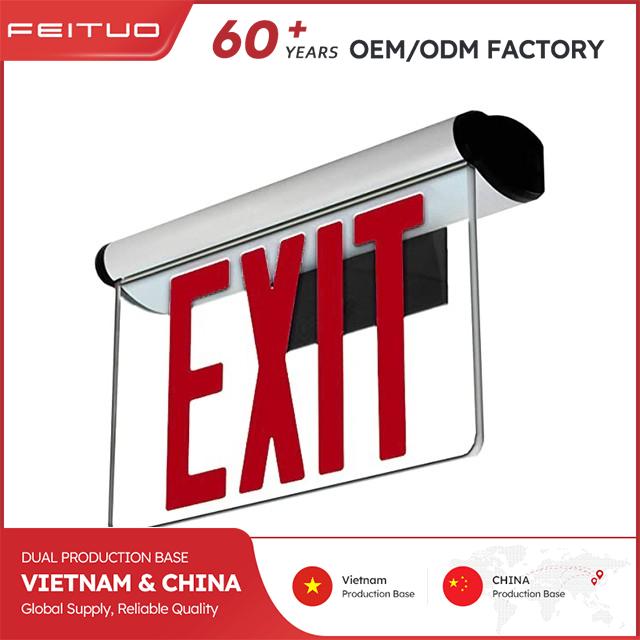

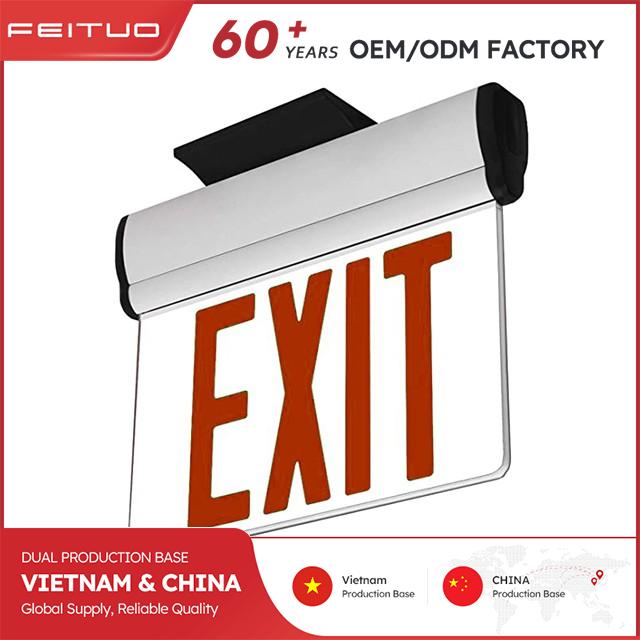

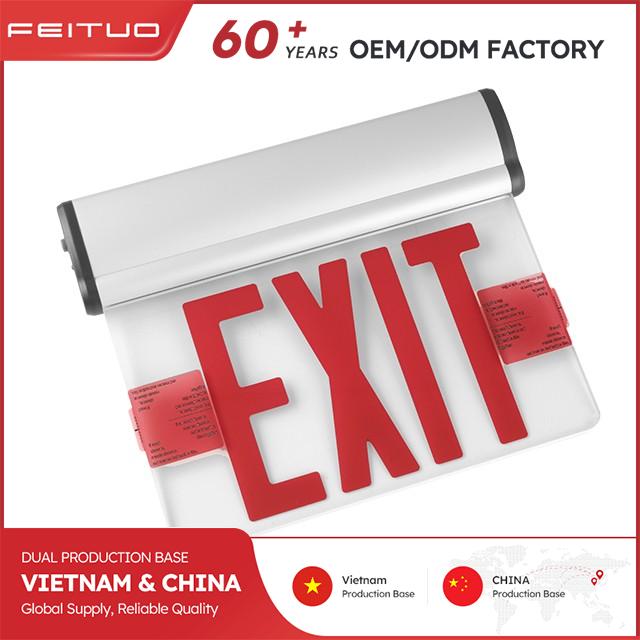

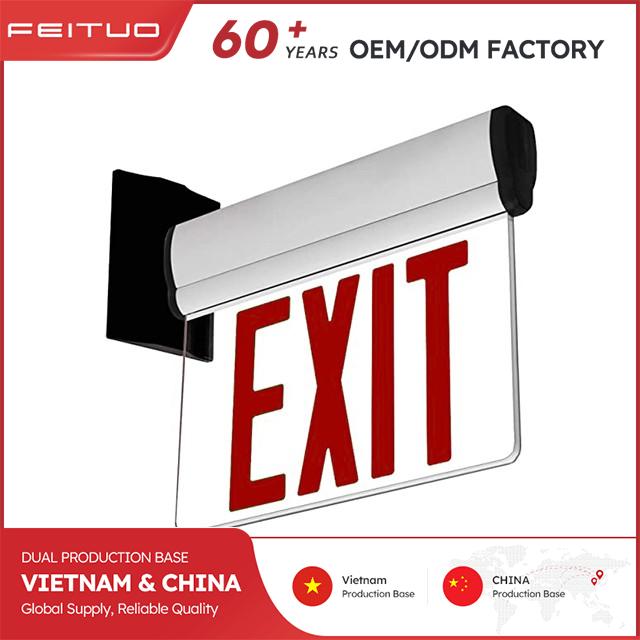

This Edge Lit Exit Sign is crafted from durable die-cast aluminum with a mirror divider acrylic panel, featuring 6" high lettering. It utilizes energy-efficient green LEDs, consuming under 3 watts (AC model) or 1 watt (battery backup). Equipped with a maintenance-free 4.8V 400mAh Ni-MH battery, it ensures reliable emergency power. The sign is designed for versatile mounting options and includes all necessary hardware. Backed by a 3-year warranty and professional support.

Model:JELBEX1RC
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

JELBEX1RC SPEC SHEET

The name can not be empty!
The email can not be empty!Email format error!
The phone can not be empty!
The message can not be empty!
  • Features
  • Specifications
  • Applications
  • Product Comparison

Features

Single Face 6 Inch LED EMERGENCY EXIT SIGN

  • Aluminum housing with high grade acrylic panel:Single-sided printing

  • Innovative,easy installation in minutes.

  • Plastic mounting plate allows top, back or end mount.

  • Removable directional indicators.

  • 120V-277VAC dual voltage operation

  • Super bright red LED lamps.

  • Buit-in 4.8V 500mAh Ni-MH battery for minimum 90 minutes emergency operation.

  • Maximum 24 hours for full recharge time

  • Test switch and charge indicator

  • Removable front cover for easy installation and battery maintenance.

  • UL and CULus listed

  • 0℃ to 40℃ indoor damp location listed

FEATURES-1.pngROBUST CONSTRUCTION

Features a die-cast aluminum housing and mirror divider acrylic panel for enhanced durability and visual clarity.


FEATURES-1.pngENERGY EFFICIENCY

Utilizes green high-output LEDs with low power consumption, rated under 3 watts for AC models and 1 watt for battery backup units.


FEATURES-1.pngRELIABLE BACKUP POWER

Includes a maintenance-free 4.8V 400mAh Ni-MH battery with low voltage protection, ensuring ≥90 minutes of emergency operation.


FEATURES-1.pngVERSATILE MOUNTING

Suitable for wall, sloped, high, or standard ceiling installations, with included hardware for quick setup.


FEATURES-1.pngQUALITY ASSURANCE

Comes with a 3-year warranty and professional after-sales support, ensuring long-term reliability.



Specifications


Product Name:Single Face 6 Inch LED EMERGENCY EXIT SIGNPacking Information
Model No.:JELBEX1RCPacking:White box
Main Specification:6 Inch, 4.8V 500mAh Ni-MH battery, Power:3W, acrylic panel, single-sided printingCarton:L (cm)W (cm)H (cm)
Carton Size:3932.520.5
Product Size:308x46.3x248.6mmCarton CBM:0.026M3
MOQ:1000PCSQ'TY/INNER BOX:PCS
Lead Time:35 daysQ'TY/CTN:6PCS
Sample Delivery Time:3~10 daysGross Weight:9KGS
Remarks: Single face, clear panel, without recessed mounting; UL & cUL ListedNet Weight:8KGS
Container Loading Q'TY (PCS):1*20'1*40'1*40' HQ
63461326915462





Applications



Hospital


Hotel


Mall


Office Building


Outdoor


Parking Lot


Restaurant


Station


Supermarket

Product Comparison



MODEL NOJEE2RWEJEE2RWJEE2GWEJEE2GWEZCXTEU2RWEMEZCXTEU2GWEMEZCXTEU2BCWEMJLEED2RWEMJLEED2RWJLEED2GWEMJLEED2GW
CERTIFICATEUL, CEC, DOE, FCCUL, CEC, DOE, FCCULULULUL
SIZE295*190*44mm
11.61"*7.48"*1.73"		295*190*44mm
11.61"*7.48"*1.73"		295*182*46mm
11.61"*7.17"*1.81"		295*182*46mm
11.61"*7.17"*1.81"		304*193*26mm
11.97"*7.6"*1.02"		304*193*26mm
11.97"*7.6"*1.02"
LETTER SIZE6"6"6"6"6"6"
LETTER COLORRedGreenRedGreenBi-color Red/GreenRedGreen
RATED VOLTAGE120/277V120/277V120/277V120/277V120-277V120-277V
INPUT CURRENT0.02/0.02A0.015/0.008A0.02/0.02A0.015/0.008A0.095A0.09A0.02A23A0.02A23A
INPUT WATT1.8W1.9W1.8W1.9W0.9W1W1.6W1.2W1.6W1.2W
LED TYPE12 Red LEDs6 Green LEDs6 Red LEDs6 Green LEDs6 Red LEDs+
6 Green LEDs		10 Red LEDs8 Green LEDs
BATTERY TYPENi-cad/Ni-cad/Ni-cadNi-MHNI-MH/NI-MH/
BATTERY CAPACITY1.2V 1000mAh/1.2V 1000mAh/1.2V 900mAh1.2V 1000mAh1.2V 1000mAh/1.2V 1000mAh/
CHARGING TIME24 Hours/24 Hours/24 Hours24 Hours24 Hours/24 Hours/
EMERGENCY RUN TIME120 Mins/120 Mins/120 Mins120 Mins120 Mins/120 Mins/
INNER BOX SIZE31*20.5*6cm31*20.5*6cm30.5*19.3*6cm30.5*19.3*6cm31.5*20.7*4.2cm31.5*20.7*4.2cm
20GP5140pcs5140pcs6000pcs6000pcs7950pcs7950pcs
40HQ13050pcs13050pcs15180pcs15180pcs20160pcs20160pcs
