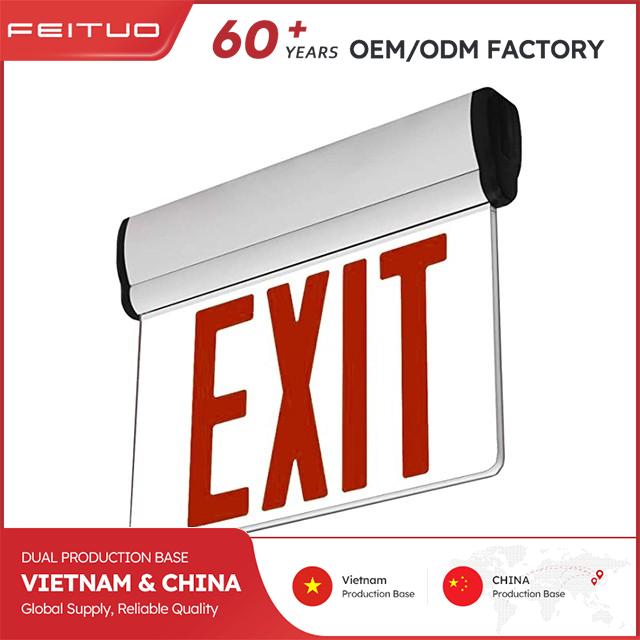

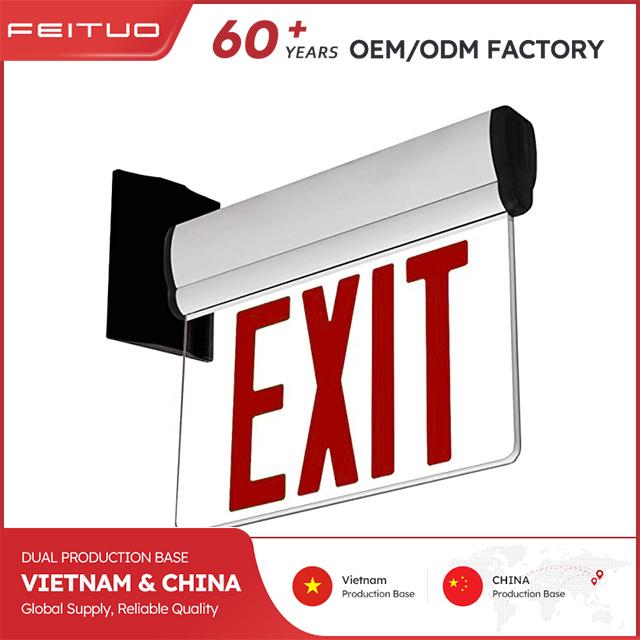

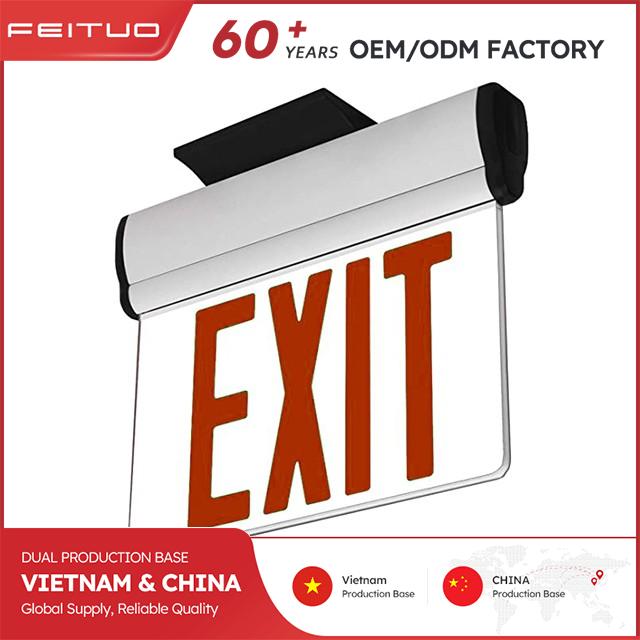

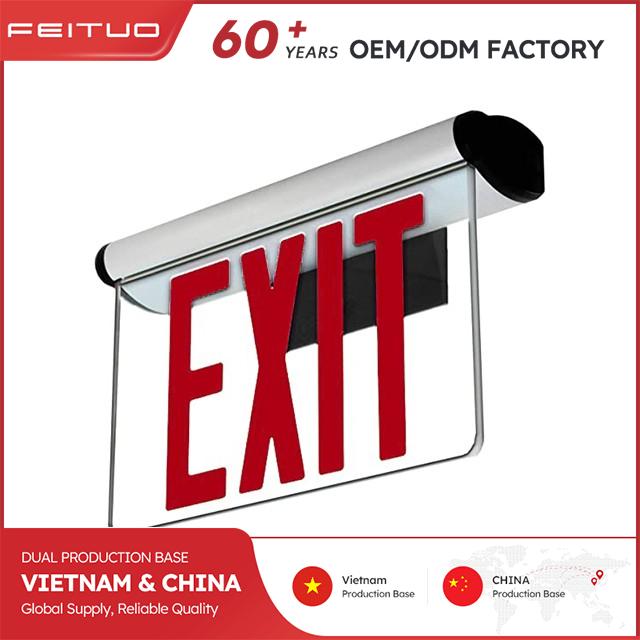

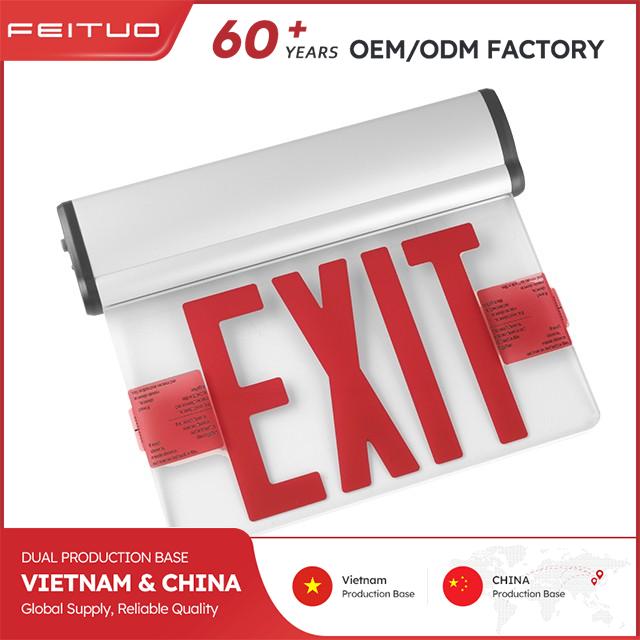

This Red LED Edge Lit Exit Sign is designed for exceptional versatility and performance. Featuring a durable die-cast aluminum housing and high-grade acrylic panel with customizable directional arrows, it supports ceiling, side, and wall mounting. The removable front cover simplifies installation and maintenance. UL listed, meeting UL 924, NEC, and NFPA 101 requirements, with optional UL Canada listing.

Model:JELBEX2RM
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

JELBEX2RM SPEC SHEET

The name can not be empty!
The email can not be empty!Email format error!
The phone can not be empty!
The message can not be empty!
  • Features
  • Specifications
  • Applications
  • Product Comparison

Features

Double Face 6 Inch LED EMERGENCY EXIT SIGN

  • Aluminum housing with high grade acrylic panel:Double-sided printing, with mirror paper.

  • Innovative, easy installation in minutes.

  • Plastic mounting plate allows top, back or end mount.

  • Removable directional indicators.

  • 120V-277VAC dual voltage operation

  • Buit-in 4.8V 500mAh Ni-MH battery for minimum 90 minutes emergency operation.

  • Super bright red LED lamps.

  • Maximum 24 hours for full recharge time

  • Test switch and charge indicator

  • Removable front cover for easy installation and battery maintenance.

  • UL and CULus listed

  • 0℃ to 40℃ indoor damp location listed

FEATURES-1.pngPREMIUM CONSTRUCTION

Durable die-cast aluminum housing with a high-grade acrylic panel for longevity and clarity.


FEATURES-1.pngCUSTOMIZABLE DIRECTIONS

Edge-lit panel with customizable directional arrows to guide towards exit routes.


FEATURES-1.pngENERGY EFFICIENCY

Red high-output LEDs consume less than 3 watts (AC model) or 1 watt (battery backup).


FEATURES-1.pngRELIABLE BACKUP POWER

Maintenance-free 4.8V 400mAh Ni-MH battery with low voltage protection ensures ≥90 minutes of emergency power.


FEATURES-1.pngFLEXIBLE INSTALLATION

Supports ceiling, side, and wall mounting with all necessary hardware included.



FEATURES-1.pngSAFETY COMPLIANCE

UL listed and meets or exceeds UL 924, NEC, and NFPA 101 Life Safety Code requirements, with optional UL Canada listing.


FEATURES-1.pngWIDE TEMPERATURE RANGE

Operates reliably in temperatures from 32°F (0°C) to 104°F (40°C).

Specifications


Product Name:Double Face 6 Inch LED EMERGENCY EXIT SIGNPacking Information
Model No.:JELBEX2RMPacking:White box
Main Specification:6 Inch, 4.8V 500mAh Ni-MH battery, Power:3W, Double-sided printing, with mirror paper.Carton:L (cm)W (cm)H (cm)
Carton Size:3932.520.5
Product Size:308x46.3x248.6mmCarton CBM:0.026M3
MOQ:1000PCSQ'TY/INNER BOX:PCS
Lead Time:35 daysQ'TY/CTN:6PCS
Sample Delivery Time:3~10 daysGross Weight:9KGS
Remarks: Double face, mirror sign board, without recessed mounting; UL & cUL ListedNet Weight:8KGS
Container Loading Q'TY (PCS):1*20'1*40'1*40' HQ
63461326915462





Applications



Hospital


Hotel


Mall


Office Building


Outdoor


Parking Lot


Restaurant


Station


Supermarket

Product Comparison



MODEL NOJEE2RWEJEE2RWJEE2GWEJEE2GWEZCXTEU2RWEMEZCXTEU2GWEMEZCXTEU2BCWEMJLEED2RWEMJLEED2RWJLEED2GWEMJLEED2GW
CERTIFICATEUL, CEC, DOE, FCCUL, CEC, DOE, FCCULULULUL
SIZE295*190*44mm
11.61"*7.48"*1.73"		295*190*44mm
11.61"*7.48"*1.73"		295*182*46mm
11.61"*7.17"*1.81"		295*182*46mm
11.61"*7.17"*1.81"		304*193*26mm
11.97"*7.6"*1.02"		304*193*26mm
11.97"*7.6"*1.02"
LETTER SIZE6"6"6"6"6"6"
LETTER COLORRedGreenRedGreenBi-color Red/GreenRedGreen
RATED VOLTAGE120/277V120/277V120/277V120/277V120-277V120-277V
INPUT CURRENT0.02/0.02A0.015/0.008A0.02/0.02A0.015/0.008A0.095A0.09A0.02A23A0.02A23A
INPUT WATT1.8W1.9W1.8W1.9W0.9W1W1.6W1.2W1.6W1.2W
LED TYPE12 Red LEDs6 Green LEDs6 Red LEDs6 Green LEDs6 Red LEDs+
6 Green LEDs		10 Red LEDs8 Green LEDs
BATTERY TYPENi-cad/Ni-cad/Ni-cadNi-MHNI-MH/NI-MH/
BATTERY CAPACITY1.2V 1000mAh/1.2V 1000mAh/1.2V 900mAh1.2V 1000mAh1.2V 1000mAh/1.2V 1000mAh/
CHARGING TIME24 Hours/24 Hours/24 Hours24 Hours24 Hours/24 Hours/
EMERGENCY RUN TIME120 Mins/120 Mins/120 Mins120 Mins120 Mins/120 Mins/
INNER BOX SIZE31*20.5*6cm31*20.5*6cm30.5*19.3*6cm30.5*19.3*6cm31.5*20.7*4.2cm31.5*20.7*4.2cm
20GP5140pcs5140pcs6000pcs6000pcs7950pcs7950pcs
40HQ13050pcs13050pcs15180pcs15180pcs20160pcs20160pcs
