FEITUO UL 924 LED Fire Exit Signs (Model JEE Series) deliver code-compliant, continuous egress illumination for commercial, industrial, and institutional buildings. Equipped with ultra-bright SMD LEDs and 6-inch high-visibility lettering in red or green, this fixture ensures clear directional guidance during both normal facility operations and sudden utility power blackouts.
Constructed from injection-molded, flame-retardant ABS thermoplastic with a UL 94V-0 rating, the JEE series features universal dual-voltage operation (120V/277VAC standard, with 120V/347VAC available for Canadian markets) and an integrated 1.2V 1000mAh Nickel-Cadmium backup battery. The system delivers over 90 minutes of emergency illumination, fully recharging within 24 hours to meet NFPA 101, OSHA 1910.37, and NEC Article 700 life-safety standards.
●High-Luminance Optical Array: Energy-efficient red or green LEDs provide uniform, glare-free legend illumination visible up to 100 feet away.
●Reliable Emergency Operation: Integrated Ni-Cd battery backup delivers at least 90 minutes of continuous emergency lighting, fully replenishing within 24 hours.
●Flexible Installation Design: Includes an all-in-one mounting canopy and universal J-box pattern for ceiling, back-wall, or end-mount configurations.
●Flame-Retardant Housing: Molded from UL 94V-0 rated ABS thermoplastic to prevent flame spread in ceiling plenums and corridors.
●Environmental Classification: Certified for indoor damp locations within an operating temperature range of 0°C to 40°C (32°F to 104°F).
SPEC SHEET
Features
Injection-molded ABS housing engineered to meet strict UL 94V-0 flammability standards.
Universal field conversion between single- and double-face configurations.
Dual-voltage driver compatibility: 120V/277VAC (USA) or 120V/347VAC (Canada).

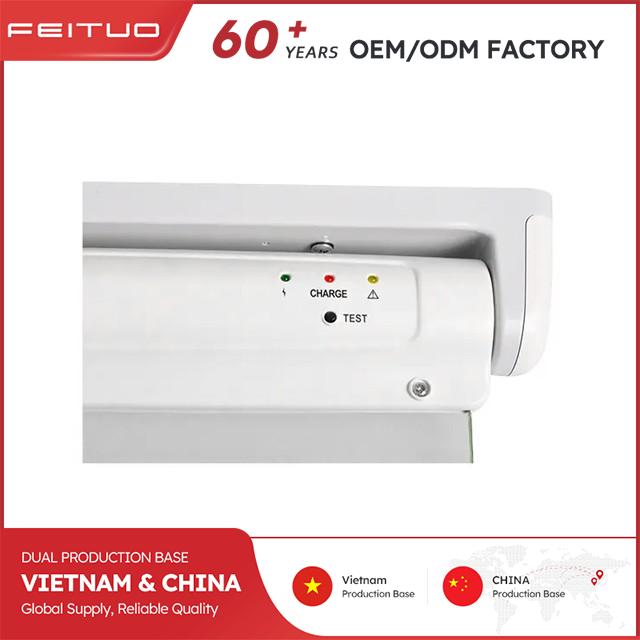

Integrated push-to-test switch and LED charge indicator for quick maintenance checks.
Tool-less faceplate assembly for faster job-site installation.
6-inch legend height with a 3/4-inch stroke width for visibility up to 100 feet.
Field-selectable, snap-out chevron directional indicators for flexible egress routing.
Low operational power draw of under 1.8W for around-the-clock efficiency.
Bilingual and regional Salida faceplates available upon request.
Technical Heads & Electrical Specifiers
●Rigorous Code Compliance: FEITUO guarantees 100% compliance with UL 924, NFPA 101 Life Safety Code, OSHA 1910.37, and NEC Article 700.
●Certified Flame Resistance: FEITUO manufactures housings using UL 94V-0 rated ABS thermoplastic, self-extinguishing within 10 seconds without flaming drips.
●Engineering Submittal Packages: FEITUO supplies certified dimension sheets, IES photometric data, and CAD/Revit BIM blocks to streamline architectural and MEP blueprint integration.
Procurement Directors
●Direct Factory Sourcing: FEITUO provides tier-one manufacturer pricing directly from our ISO-certified facilities, cutting out middleman margins on full container loads.
●UL White-Label Multiple Listing: FEITUO manages the entire UL Multiple Listing (ML) filing process, enabling distributors to market under proprietary brand names and catalog numbers without redundant test fees.
●Traceable Quality Assurance: FEITUO conducts 100% full-load burn-in testing, SMT automated optical inspection, and component lot tracing under an ISO 9001 quality framework.
Supply Chain Directors
●Dual-Hub Manufacturing Resilience: FEITUO coordinates production across dual manufacturing hubs in China and Vietnam, offering capacity backup and operational continuity.
●Tariff Structure Optimization: FEITUO provides verified Certificates of Origin (C/O) from our Vietnam facility, helping North American buyers mitigate Section 301 customs duties.
●Predictable Lead Times: FEITUO maintains a standard 30-to-35-day production cycle, backed by strategic raw material buffer inventories and multimodal FOB, CIF, or DDP logistics support.
Business Owners & EPC Contractors
●Long-Term Operating Savings: FEITUO exit signs draw under 1.8W, cutting energy consumption by over 80% compared to legacy fluorescent fixtures.
●Dependable Inspection Sign-Off: FEITUO builds to strict testing protocols to guarantee first-pass AHJ inspections, preventing project delays and securing on-time occupancy certificates.
Sales Leads & Regional Distributors
●Reduced Stocking Overhead: FEITUO incorporates field-convertible single/double faceplates and knock-out directional chevrons, reducing warehouse stocking SKUs by up to 50%.
●Protected Channel Margins: FEITUO enforces project registration protocols and regional territory protection to protect margins during commercial bidding.
Specifications
| Parameter | Specification Details |
| Product Series | Model JEE Series UL 924 LED Fire Exit Sign |
| Model Reference | JEE2RWE (Red Letters) / JEE2GWE (Green Letters) |
| Input Voltage | 120V/277VAC, 50/60Hz (USA) or 120V/347VAC, 50/60Hz (Canada) |
| Power Consumption | 1.8W Maximum |
| Emergency Run Time | Minimum 90 Minutes (Full Continuous Discharge) |
| Battery Technology | Integrated 1.2V 1000mAh Nickel-Cadmium (Ni-Cd) Battery Pack |
| Full Recharge Cycle | 24 Hours Maximum |
| Illumination Source | Ultra-Bright Surface-Mount Device (SMD) LEDs |
| Enclosure Material | High-Impact Injection-Molded ABS Thermoplastic |
| Flammability Rating | UL 94V-0 Flame Retardant |
| Letter Dimensions | 6.0-inch (152.4 mm) Height with 3/4-inch (19.0 mm) Stroke |
| Faceplate Options | Single Face / Double Face Field Convertible; Optional Salida Faceplate |
| Mounting Capability | Universal Canopy for Ceiling, Surface Back-Wall, or End Mounting |
| Environmental Rating | Indoor Damp Location Listed (0°C to 40°C / 32°F to 104°F) |
| Regulatory Standards | UL 924 Listed, cULus, NFPA 101, NFPA 70 (NEC), OSHA 1910.37 |
Packaging & Export Logistics Data
| Metric | Specification (Metric / Imperial) |
| Product Dimensions | 295 x 190 x 44 mm (11.61" x 7.48" x 1.73") |
| Inner Packaging | 310 x 205 x 60 mm (1 PC per White Box) |
| Master Carton Dimensions | 32.5 x 22.5 x 40.0 cm (6 PCS per Export Carton) |
| Master Carton Volume | 0.029 CBM |
| Gross / Net Weight | 6.27 KGS / 5.70 KGS per Master Carton |
| Minimum Order Quantity (MOQ) | 200 PCS |
| Production Cycle | 30 to 35 Business Days |
| Container Utilization | 20' GP: 5,690 PCS | 40' GP: 11,897 PCS | 40' HQ: 11,897+ PCS |
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
Installation Video
Technical Frequently Asked Questions
How does the JEE series comply with emergency power mandates in NFPA 101?
Under NFPA 101 Section 7.9 and UL 924, emergency exit signage must illuminate within 10 seconds of utility power failure and maintain continuous visibility for at least 90 minutes. FEITUO incorporates an automatic solid-state transfer switch coupled with an industrial-grade 1.2V 1000mAh Ni-Cd battery, sustaining legal legend illumination throughout the full 90-minute window and fully recharging within 24 hours of line power restoration.
Why is the UL 94V-0 flammability classification essential for commercial egress sign housings?
In electrical fires or structural blazes, lower-grade polymers (such as HB or V-2 plastics) can ignite and generate flaming droplets that accelerate flame spread along ceilings and exit corridors. A UL 94V-0 rating confirms that the housing material self-extinguishes within 10 seconds of flame contact and produces zero burning drips, preserving safe evacuation paths.
What is the procedure for establishing a UL Multiple Listing (ML) with FEITUO?
Using FEITUO's existing UL 924 file, distributors and OEM brands can submit an Underwriters Laboratories Multiple Listing agreement. FEITUO handles the technical filings, labeling alignment, and private-label packaging details, allowing commercial partners to distribute certified hardware under their proprietary brand marks and part numbers without paying for independent laboratory re-testing.
How does FEITUO's dual-hub production setup reduce tariff exposure and delivery risks?
FEITUO manufactures across dual production hubs in Ningbo, China, and Haiphong, Vietnam. For North American shipments, final assembly, optical testing, battery cycling, and container staging can be routed through our Vietnam facility to generate compliant Certificates of Origin (C/O). This mitigates Section 301 customs duties while providing operational redundancy against regional port bottlenecks.
Request Wholesale Pricing & Engineering Submittals
Procuring UL 924 certified LED fire exit signs for commercial tenders, distributor programs, or private-label projects requires complete documentation and dependable production capacity.
Please submit your project specifications below, including input voltage requirements (120V/277V or 120V/347V), legend configuration (Red/Green/Salida), projected unit quantities, and delivery port. FEITUO's commercial team will provide official engineering submittal sheets, photometric data, and factory FOB/DDP quotations within 24 business hours.
