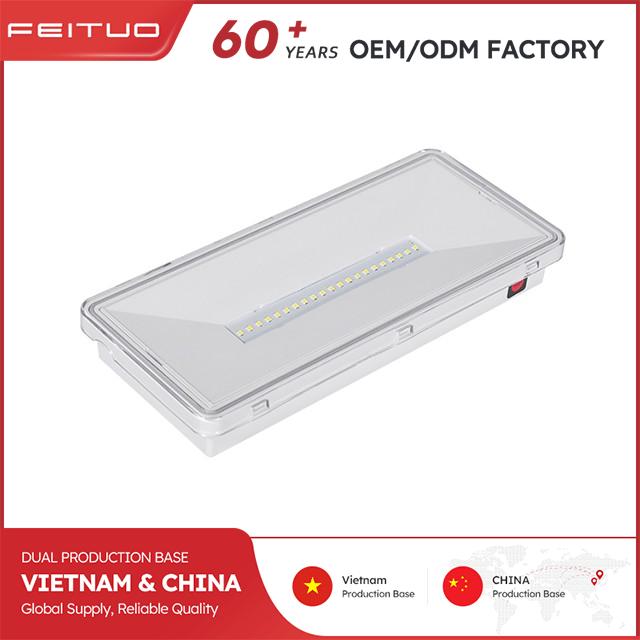

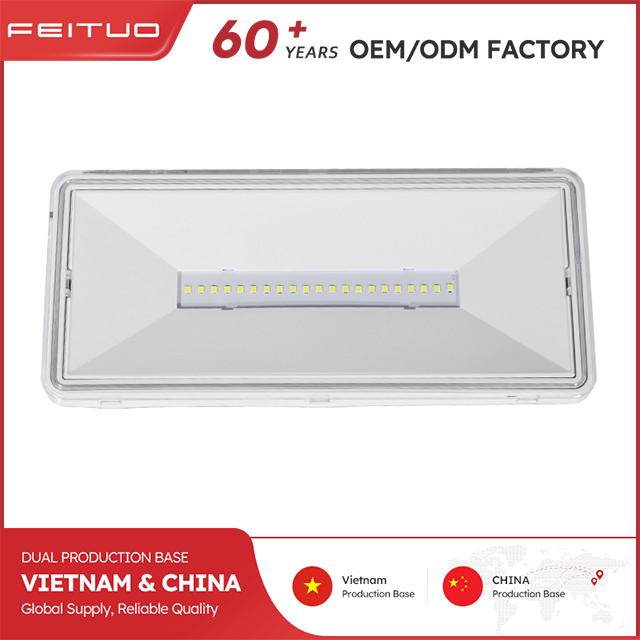

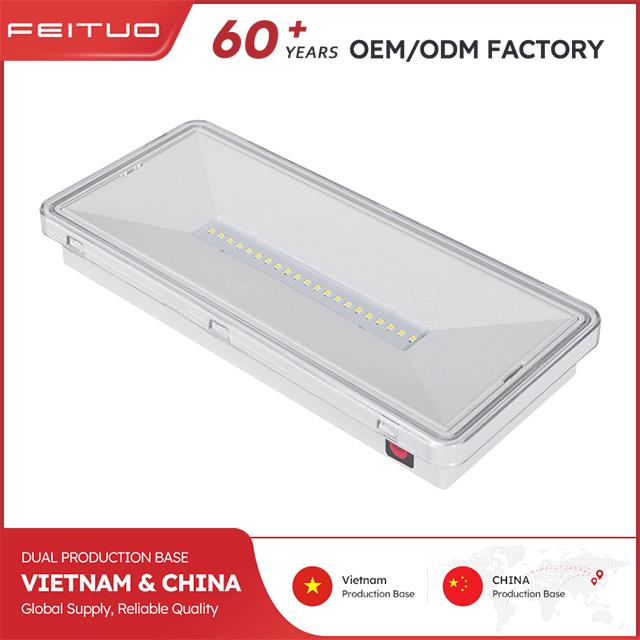

This 21LED Waterproof emergency exit sign is a modern and reliable lighting solution for emergency egress guidance. It features a slim design with a clear polycarbonate diffuser and ABS housing, ensuring durability and protection. The sign is equipped with 21 energy-efficient SMD3528 LED lights, providing a luminous output of 160 lm. Operating in Maintained mode, it runs on 220-240V / 50-60Hz with a maximum power consumption of 2.8W. The output voltage is DC 5V ± 0.5V, delivering a stable 3.8W output. Powered by a 3.6V 1500mAh NI-MH battery, it ensures reliable backup power. With a maximum charge current of 200mA and a maximum discharge current of 500mA, it has a charging time of 24 hours and a discharge time of 3 hours. The sign has an IP65 rating, making it suitable for use in wet environments. It can be converted to edge-lit exit signs using accessories and comes with an optional multi-directional sticker legend kit.
Features
New slim type bulkhead emergency lighting
Clear polycarbonate diffuser & ABS housing
21pcs SMD3528 LED for enhanced lumen output
3 hours maintained operation can be wired as non-maintained
With converted to Edge-lit exit signs by accessories
Optional multi directional sticker legend kit
Modern & Durable Design
Features a slim profile with a clear polycarbonate diffuser and ABS housing for durability.
High Brightness
21pcs SMD3528 LEDs deliver 160 lm for effective illumination.
Waterproof Protection
IP65 rating ensures reliable performance in wet environments.
Flexible Installation
Can be converted to edge-lit exit signs using accessories and comes with an optional multi-directional sticker legend kit.
Energy Efficient
Operates on 220-240V / 50-60Hz with a maximum power consumption of 2.8W.
Stable Power Output
Provides a stable 3.8W output at DC 5V ± 0.5V.
Efficient Battery Management
With a max charge current of 200mA and max discharge current of 500mA, ensuring optimal battery performance.
Reliable Backup Power
Powered by a 3.6V 1500mAh NI-MH battery for extended backup.
Extended Emergency Operation
Offers 3 hours of discharge time for prolonged use during emergencies.
Specifications
| Product Name: | 21LED Waterproof emergency exit sign-IP65 | Packing Information | |||
| Model No.: | LE515-21 EXIT | Packing: | Color box | ||
| Main Specification: | 21LEDs, 3.6V 1500mAh Ni-MH battery, Maintained, with acrylic signs | Carton: | L (cm) | W (cm) | H (cm) |
| Carton Size: | 40 | 29 | 21 | ||
| Product Size: | 352x11x67mm | Carton CBM: | 0.024M3 | ||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 12PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 8KGS | ||
| Remarks: With single face acrylic sign | Net Weight: | 7KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 13750 | 28750 | 33500 | |||
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
