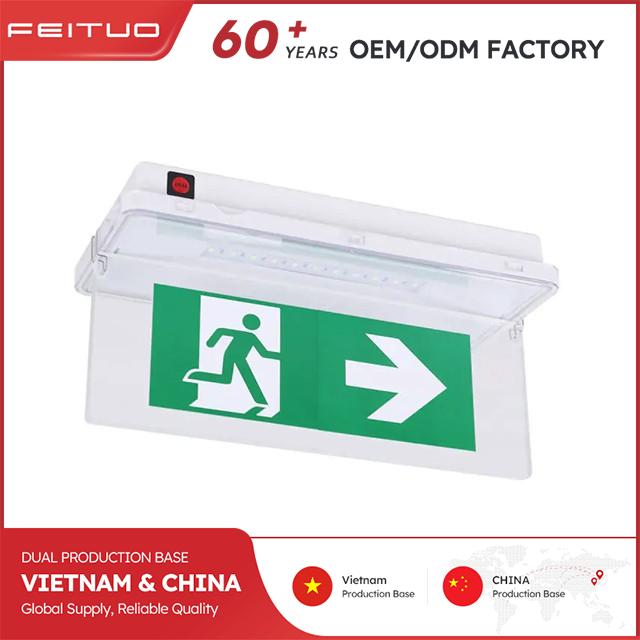

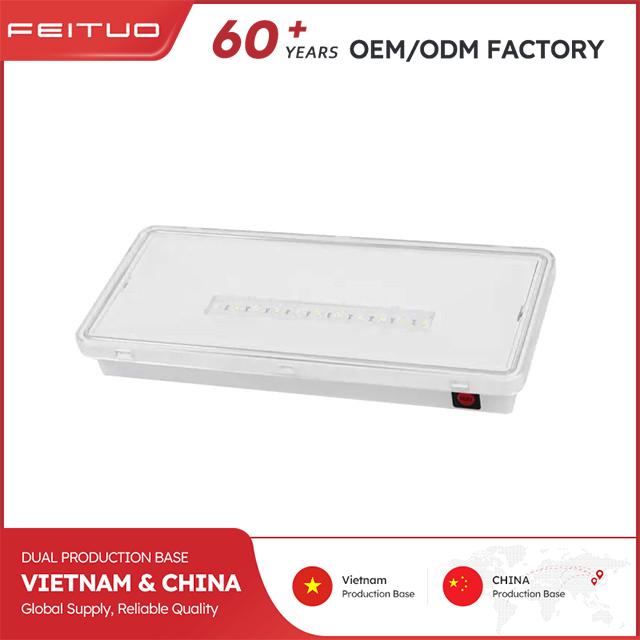

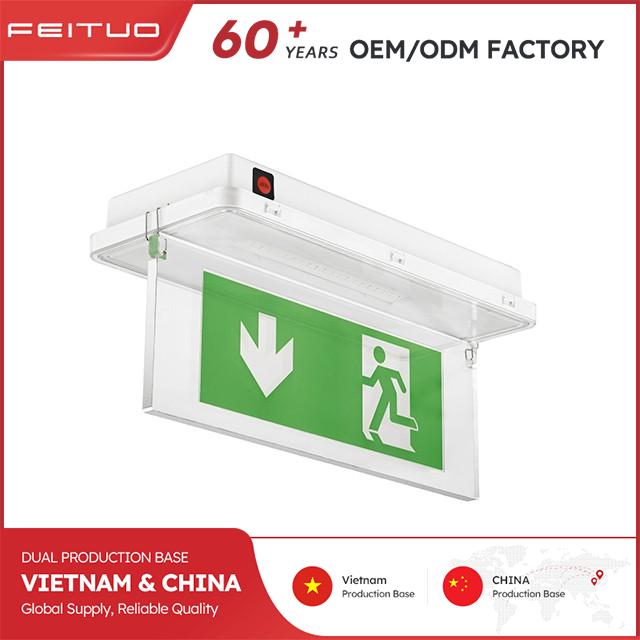

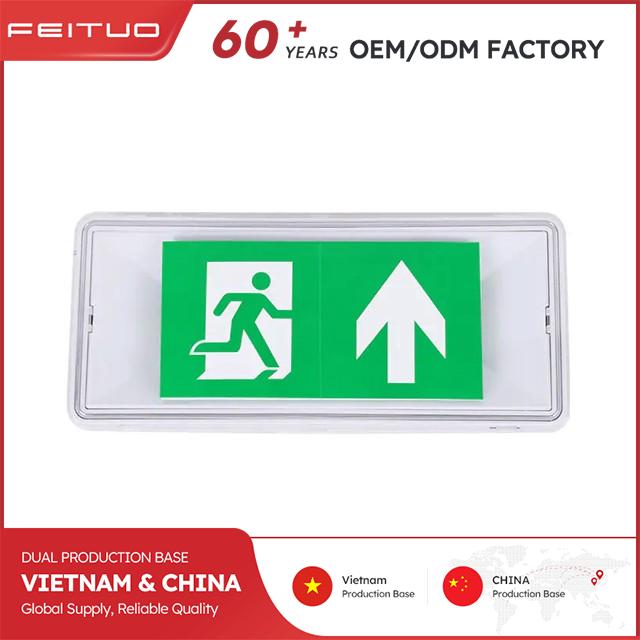

This ultra-slim 11LED emergency light (IP65) blends seamlessly into modern architecture with a 2.5cm profile. Delivering 80lm via SMD2835 LEDs, it operates 3hrs in maintained/non-maintained modes. The polycarbonate diffuser accepts multi-directional adhesive labels, while its Ni-MH battery (24hr charge) ensures reliability in humid spaces like server rooms or hallways.
Features
New slim type bulkhead emergency lighting.
Clear polycarbonate diffuser & ABS housing.
3 hours maintained operation can be wired as non-maintained

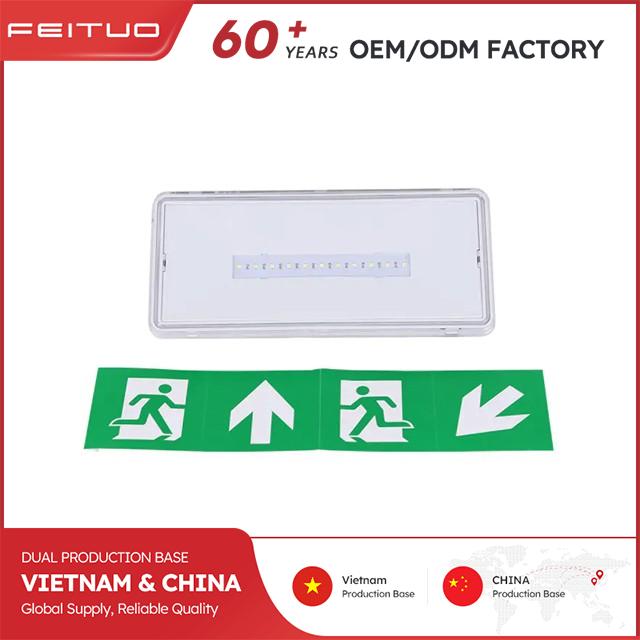

Optional multi directional sticker legend kit
11pcs SMD3528 LED for enhanced lumen output.
INVISIBLE SAFETY
2.5cm ultra-thin design vanishes into ceilings/walls, perfect for luxury retail or minimalist offices.
SILENT SENTINEL
Zero light pollution in standby mode; activates within 0.5s during blackouts.
ADAPTIVE LABELS
Custom acrylic legends (e.g., fire escape arrows) attach directly to the diffuser, rotatable for multi-angle guidance.
ECO-CORE POWER
Ni-MH battery resists memory effect, performs reliably in freezer rooms or tropical climates.
PRECISION EFFICIENCY
2.8W output with constant-current tech cuts energy waste, ideal for LEED-certified buildings.
Specifications
| Product Name: | 11LED Waterproof Luminaires-IP65 | Packing Information | |||
| Model No.: | LE515-11 | Packing: | Color box | ||
| Main Specification: | 11LEDs, 3.6V 1000mAh Ni-MH battery, Maintained | Carton: | L (cm) | W (cm) | H (cm) |
| Carton Size: | 39 | 28.5 | 19.5 | ||
| Product Size: | 352x11x67mm | Carton CBM: | 0.022M3 | ||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 12PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 6KGS | ||
| Remarks: | Net Weight: | 5KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 15000 | 31364 | 36545 | |||
| Mode of operation | Maintained | Voltage | 220-240V 50-60Hz |
| Power Consumption | MAX 2.0W | Output Voltage | DC 5V ±0.5V |
| Output Power | 2.8W | Lumen Output | 80 lm |
| Battery | 3.6V 1000mAh NI-MH | Max Charge Current(mA) | MAX 100mA |
| Max Discharge Current (mA) | MAX 280mA | Charging Time | 24H |
| Discharge Time | 3H | LED | 11pcs SMD 2835 |
| IP Grade | IP65 |
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
