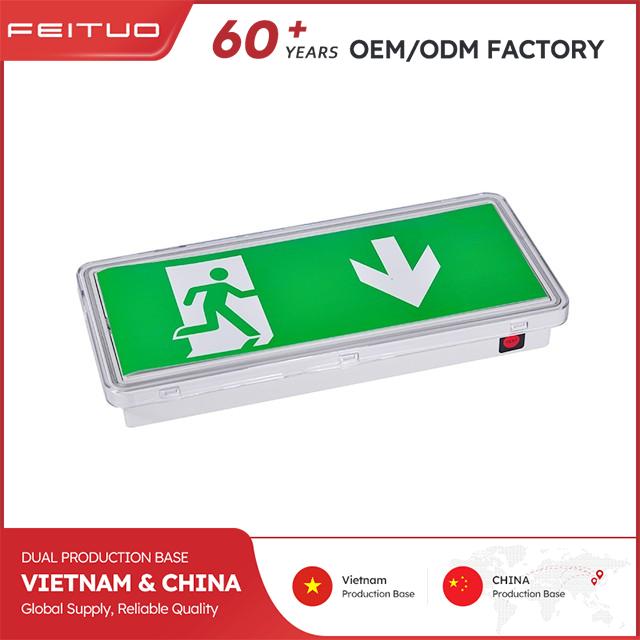

This slim emergency light (2.8cm thick) delivers 160lm brightness with 21 high-efficiency LEDs, activating in 0.3s during outages for 3hr runtime. Its IP65-rated ABS/PC housing resists dust and water, while customizable labels on the diffuser enhance guidance in malls, tunnels, or industrial areas. Powered by a 3.6V 1500mAh eco-friendly battery (24hr charge).
Features
New slim type bulkhead emergency lighting.
Clear polycarbonate diffuser & ABS housing.
21pcs SMD3528 LED for enhanced lumen output.
3 hours maintained operation can be wired as non-maintained
Optional multi directional sticker legend kit
DISCREET & RELIABLE
2.8cm profile blends into ceilings/walls, ideal for aesthetics-driven spaces like galleries or lobbies.
CRISP WIDE LIGHTING
160lm covers 20-30m² evenly, eliminating dark zones in stairwells or parking lots.
ALL-WEATHER READY
Operates flawlessly from freezer rooms (-20℃) to boiler rooms (50℃) with 500mA surge capacity.
CUSTOM GUIDANCE
Attach "EXIT" or directional labels at any angle on the diffuser for multi-path environments.
COST-EFFICIENT
1000+ charge cycles extend battery life beyond 5 years, reducing replacements and waste.
Specifications
| Product Name: | 21LED Waterproof Luminaires-IP65 | Packing Information | |||
| Model No.: | LE515-21 | Packing: | Color box | ||
| Main Specification: | 21LEDs, 3.6V 1500mAh Ni-MH battery, Maintained | Carton: | L (cm) | W (cm) | H (cm) |
| Carton Size: | 39 | 28.5 | 19.5 | ||
| Product Size: | 352x11x67mm | Carton CBM: | 0.022M3 | ||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 12PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 6KGS | ||
| Remarks: | Net Weight: | 5KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 15000 | 31364 | 36545 | |||
| Mode of operation | Maintained | Voltage | 220-240V 50-60Hz |
| Power Consumption | MAX 2.8W | Output Voltage | DC 5V ±0.5V |
| Output Power | 3.8W | Lumen Output | 160 lm |
| Battery | 3.6V 1500mAh NI-MH | Max Charge Current(mA) | MAX 200mA |
| Max Discharge Current (mA) | MAX 500mA | Charging Time | 24H |
| Discharge Time | 3H | LED | 21pcs SMD 2835 |
| IP Grade | IP65 |
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
