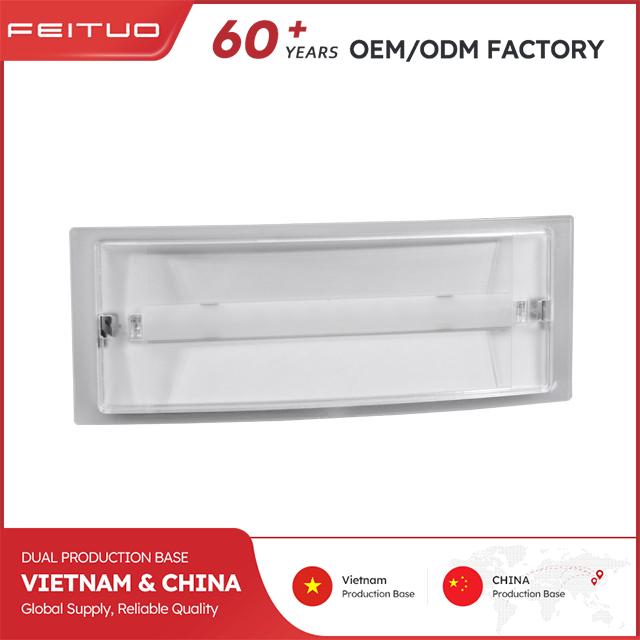

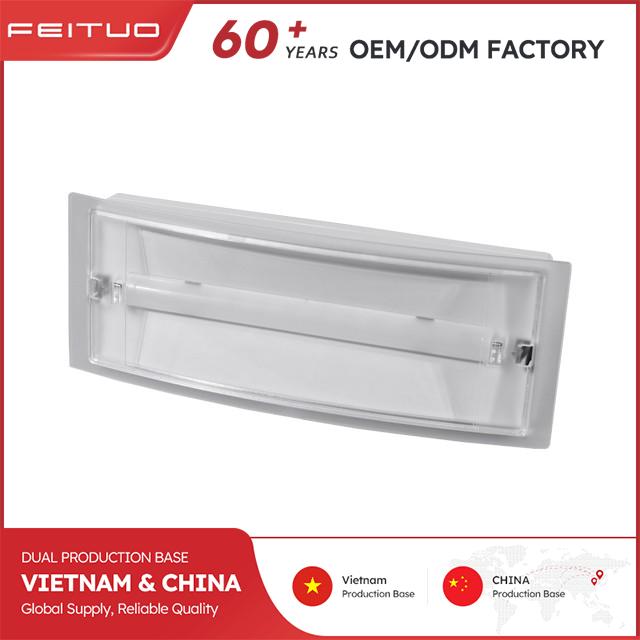

The slim LED emergency light features an ABS base with a PC diffuser and 12pcs SMD2835 LEDs for 3 hours of maintained operation. The lamp cover allows for adhesive label application to meet various needs. It complies with IEC60598-2-22 and RoHS standards for safety and eco-friendliness.
Features
New slim type emergency light
Clear polycarbonate diffuser & ABS housing

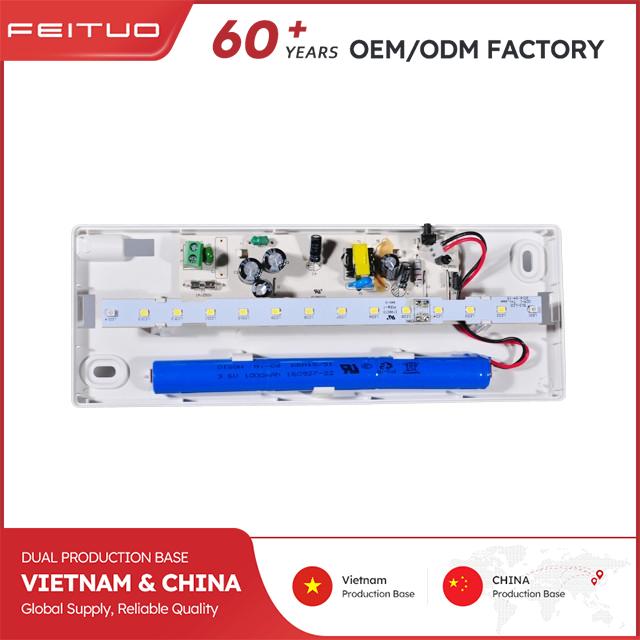

12pcs SMD2835 led with tub-like shape
3 hours maintained operation
Optional multi directional sticker legend kit
Complies with IEC60598-2-22, ROSH
SLIM PROFILE
Compact and stylish design, space-saving and suitable for various installation settings.
BRIGHT LIGHTING
12pcs SMD2835 LEDs deliver 85 lumens of bright light for clear visibility.
EXTENDED RUNTIME
Equipped with a 3.6V 1000mAh Ni-Cad battery for 3 hours of maintained operation and a 24-hour recharge time.
CUSTOMIZABLE LABELS
The lamp cover allows for adhesive label application to meet different labeling needs.
ECO-FRIENDLY COMPLIANCE
Meets IEC60598-2-22 and RoHS standards for safety and environmental protection.
MODE OF OPERATION
AC/DC mode, compatible with 220-240V 50-60Hz voltage, with a maximum power of only 5.2W for energy efficiency.
Specifications
| Product Name: | Emergency Light | Packing Information | |||
| Model No.: | LE513AD | Packing: | Color box | ||
| Main Specification: | 12pcs SMD2835 LED,3.6V 1000 mAh Ni-Cad battery | Carton: | L(cm) | W(cm) | H(cm) |
| Carton Size: | 49 | 28.5 | 24 | ||
| Product Size: | 240x90x43.5mm | Carton CBM: | 0.034M3 | ||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 30PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 10KGS | ||
| Remarks: Maintained | Net Weight: | 9KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 24265 | 50735 | 59118 | |||
| Mode of operation | Maintained | Voltage | 220-240V 50-60Hz |
| Power | 5.2W max | Output Voltage | DC 5V |
| Output Power | 0.7W | Lumen Output | 85lm |
| Battery | 3.6V 1000mAh Ni-Cad battery | Max Charge Current(mA) | 435mA |
| Max Discharge Current(mA) | 280mA | Charging Time | 24H |
| Discharging Time | 3H | Lamp | SMD LED2835*12pcs |
| IP Grade | IP20 | Test button |
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
