Exit signs are ubiquitous in public and private spaces, guiding people to safety during emergencies. Yet, despite their critical role, few pause to consider their dimensions, design standards, or the regulatory frameworks governing their size. This article explores the physical dimensions of exit signs, the factors influencing their size, and the global variations in standards, ultimately highlighting why these seemingly simple devices are engineered with precision.

Standard Dimensions of Exit Signs

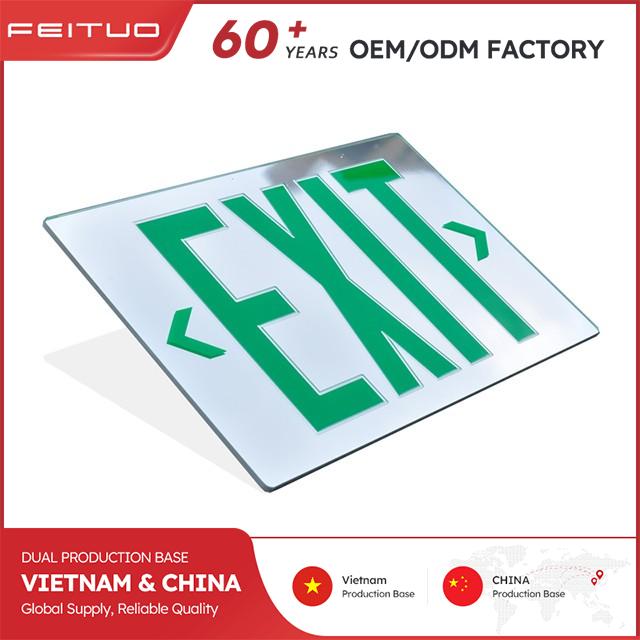

The size of an exit sign is not arbitrary; it is determined by safety regulations and visibility requirements. In the United States, the Occupational Safety and Health Administration (OSHA) and the National Fire Protection Association (NFPA) set guidelines under the Life Safety Code (NFPA 101). Typically, exit signs must have a minimum height of 6 inches (15 cm) and a width proportional to their height, often around 12 inches (30 cm) for standard rectangular models. The letters "EXIT" must be at least 6 inches tall, with a stroke width of 3/4 inch (1.9 cm) to ensure legibility from a distance.

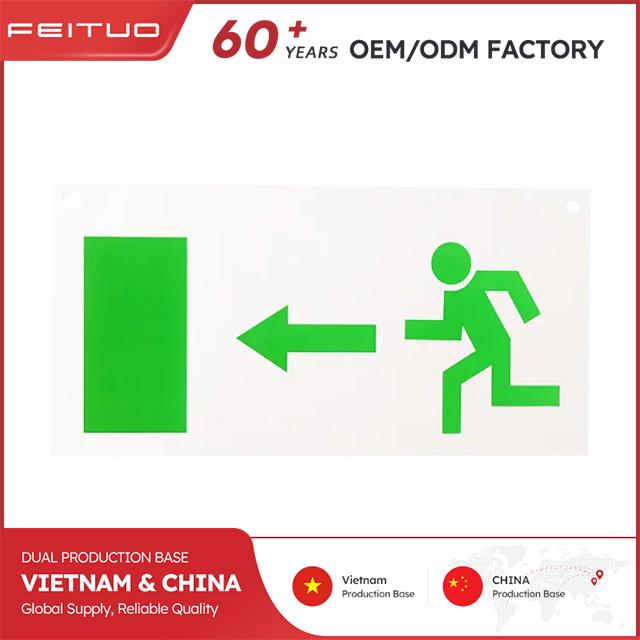

In the European Union, compliance with ISO standards (e.g., ISO 7010) and local regulations like the UK’s Building Regulations dictates similar dimensions. The European exit sign, which features a running man symbol instead of text, usually measures 20 cm in height for the pictogram, with the entire sign spanning 30–40 cm in width. These variations reflect regional preferences for text versus symbols but maintain a shared goal: ensuring visibility under stress.

Factors Influencing Exit Sign Size

1.Viewing Distance:The primary determinant of an exit sign’s size is how far away it must be visible. For example, a sign in a large warehouse or stadium must be larger than one in a small office to account for greater viewing distances. The International Building Code (IBC) recommends a formula: sign height (in inches) multiplied by 100 should equal the maximum viewing distance in feet. A 6-inch-tall sign, therefore, is optimal for up to 60 feet (18 meters).

2.Lighting Conditions:Exit signs must remain visible in smoke-filled or dimly lit environments. Photoluminescent signs, which glow without electricity, often require larger dimensions to compensate for lower brightness compared to illuminated signs. Similarly, signs with backup batteries (e.g., LED exit signs) can be smaller but must still meet contrast and color requirements (typically red or green text on a contrasting background).

3.Mounting Location:Ceiling-mounted exit signs are often larger than wall-mounted ones to account for higher placement and potential obstructions. In contrast, floor-level exit signs, used in theaters or as backup systems, may be smaller but must include directional arrows, adding complexity to their design.

Global Variations in Exit Sign Standards

While the U.S. and EU share core principles, other regions adapt exit signs to cultural and linguistic needs. In Japan, exit signs combine the running man symbol with kanji characters like “出口” (deguchi), meaning “exit.” These signs are often square and slightly larger (40 cm x 40 cm) to accommodate bilingual text. In contrast, Middle Eastern countries may use Arabic script alongside symbols, requiring taller lettering to ensure readability.

Australia’s Building Code of Australia (BCA) mandates exit signs with a minimum height of 150 mm (5.9 inches) for the pictogram or text, aligning closely with ISO standards. However, local adaptations, such as multilingual signs in tourist-heavy areas, can increase dimensions further.

Conclusion: The Critical Role of Exit Sign Dimensions

Exit signs are more than mere fixtures; they are life-saving tools designed to cut through chaos. Their size is a carefully calculated balance of visibility, legibility, and compliance with regional safety codes. Whether it’s a 6-inch-tall OSHA-approved exit sign in a New York office or a 40-cm European pictogram guiding crowds in Berlin, these dimensions ensure that exit signs fulfill their purpose when it matters most. By adhering to standardized sizes, architects and engineers create environments where safety is intuitive, even in the darkest moments. The humble exit sign, in all its variations, remains a testament to the power of thoughtful design in protecting human life.
