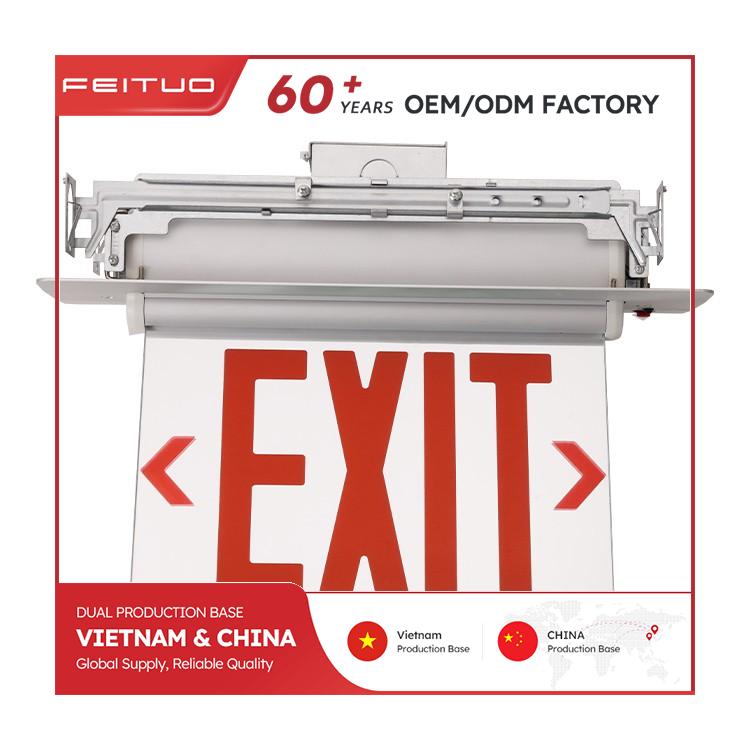

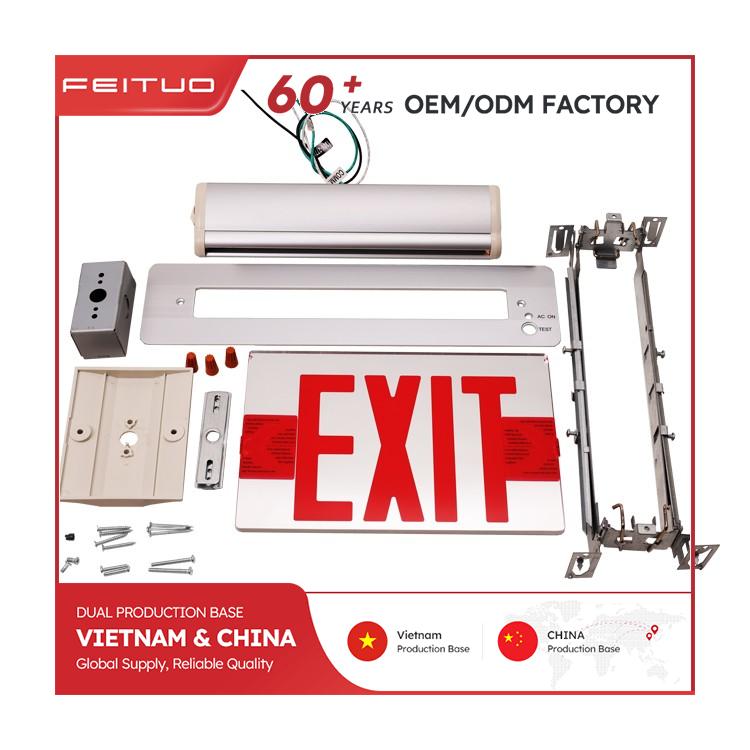

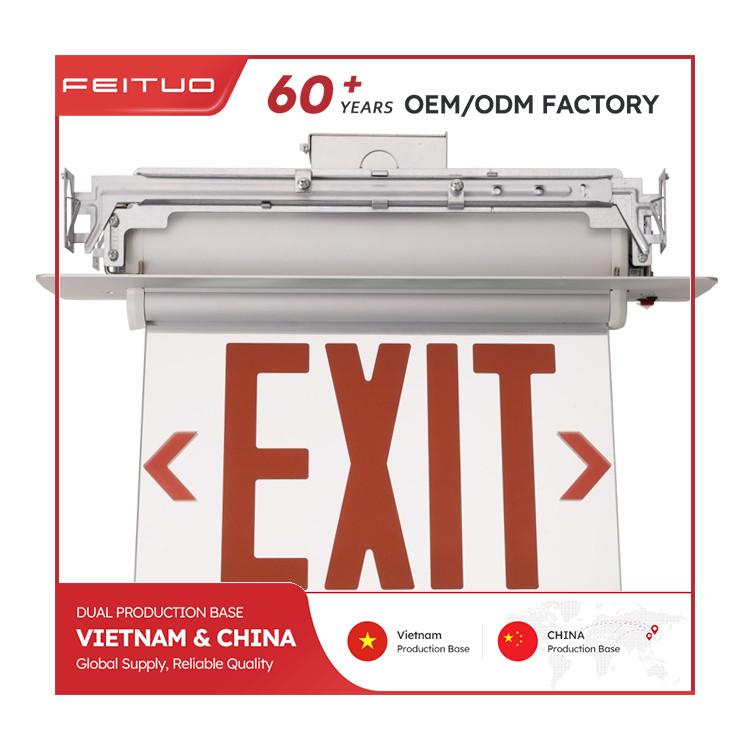

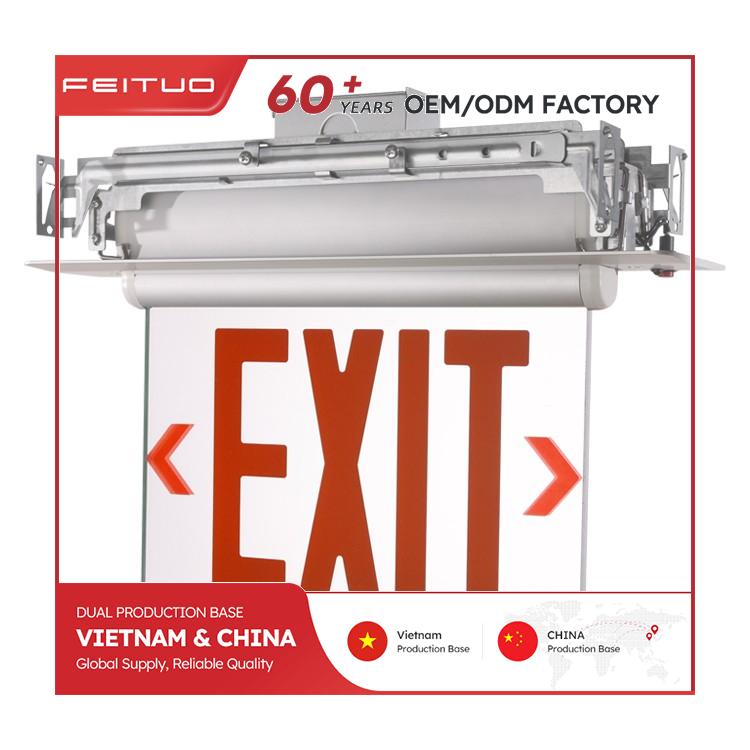

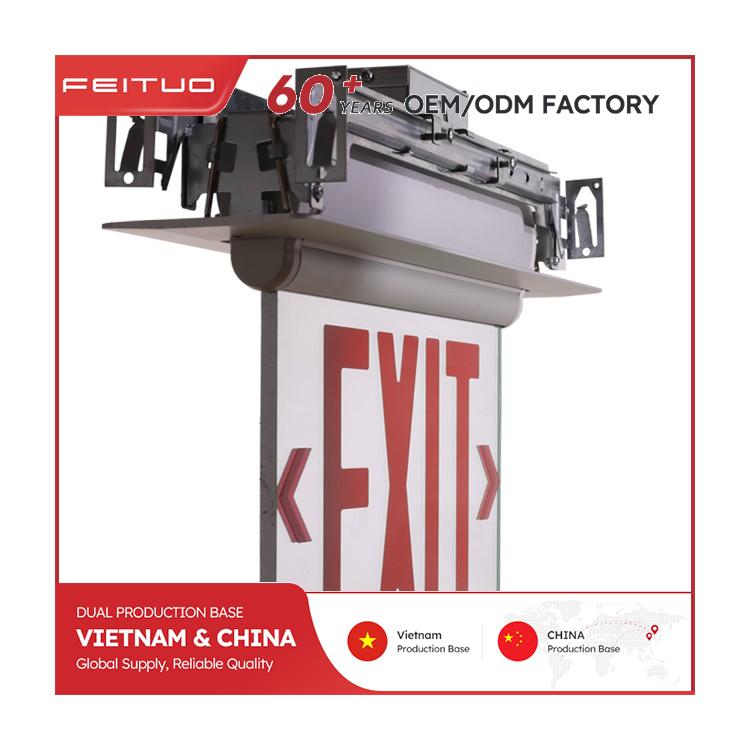

While many emergency exit signs are restricted to wall - mounted or J - box installations, the JREEL2RM offers a more flexible solution. This double - face 6 - inch LED emergency exit sign features an aluminum housing and high - grade acrylic panels with double - sided mirror - like printing. It is designed for easy installation in drywall or drop ceilings, with bar hangers included. UL and cUL - listed, the JREEL2RM also includes a super - bright red LED and a built - in 4.8V 500mAh Ni - MH battery that provides at least 90 minutes of emergency operation. The removable front cover ensures hassle - free maintenance, making it perfect for indoor damp locations between 0℃ and 40℃.
Features
Aluminum housing with high grade acrylic panel: Double-sided printing, with mirror paper
Compatible with drywall or drop ceiling mount installations
Bar hangers included
Double face, 6" acrylic panels, with silver or white Mylar
Removable directional indicators
120V~277VAC dual voltage operation
Super bright red LED lamps
Buit-in 4.8V 500mAh Ni-MH battery for minimum 90 minutes emergency operation
Maximum 24 hours for full recharge time
Test switch and charge indicator
Removable front cover for easy installation and battery maintenance
UL and cUL (Canada) listed
0℃ to 40℃ indoor damp location listed
Superior Visibility
Double - face design with 6 - inch mirror - like acrylic panels ensures clear visibility from both sides.
Flexible Mounting Options
Suitable for drywall or drop ceiling installations, with included bar hangers for easy setup.
Reliable Backup Power
Built - in 4.8V 500mAh Ni - MH battery provides at least 90 minutes of emergency operation.
Easy - to - Maintain
Removable front cover allows for hassle - free installation and battery maintenance.
Dual Voltage Compatibility
Compatible with 120V - 277VAC, ensuring versatility in different electrical systems.
Safety Certified
UL and cUL - listed, ensuring reliability and safety in indoor damp locations.
Specifications
| Product Name: | Double Face 6 Inches Aluminum Recessed Mounting LED EMERGENCY EXIT SIGN | Packing Information | |||
| Model No.: | JREEL2RM | Packing: | White box | ||
| Main Specification: | 6 Inch, RED EXIT, 4.8V 500mAh Ni-MH battery, Power:3W, Double face acrylic panel with mirror layer in the middle | Carton: | L (cm) | W (cm) | H (cm) |
| Carton Size: | 44.5 | 25 | 22.5 | ||
| Product Size: | 40.7x11.2x27cm | Carton CBM: | 0.025M3 | ||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 2PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 5KGS | ||
| Remarks: 1xDouble face panel, mirror sign board, with recessed mounting, UL&cUL Listed | Net Weight: | 4KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 2200 | 4600 | 5360 | |||
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
Product Comparison
| PRICTURE |  |  |  |  |  |  |  | ||||
| MODEL NO | JEE2RWE | JEE2RW | JEE2GWE | JEE2GW | EZCXTEU2RWEM | EZCXTEU2GWEM | EZCXTEU2BCWEM | JLEED2RWEM | JLEED2RW | JLEED2GWEM | JLEED2GW |
| CERTIFICATE | UL, CEC, DOE, FCC | UL, CEC, DOE, FCC | UL | UL | UL | UL | |||||
| SIZE | 295*190*44mm 11.61"*7.48"*1.73" | 295*190*44mm 11.61"*7.48"*1.73" | 295*182*46mm 11.61"*7.17"*1.81" | 295*182*46mm 11.61"*7.17"*1.81" | 304*193*26mm 11.97"*7.6"*1.02" | 304*193*26mm 11.97"*7.6"*1.02" | |||||
| LETTER SIZE | 6" | 6" | 6" | 6" | 6" | 6" | |||||
| LETTER COLOR | Red | Green | Red | Green | Bi-color Red/Green | Red | Green | ||||
| RATED VOLTAGE | 120/277V | 120/277V | 120/277V | 120/277V | 120-277V | 120-277V | |||||
| INPUT CURRENT | 0.02/0.02A | 0.015/0.008A | 0.02/0.02A | 0.015/0.008A | 0.095A | 0.09A | 0.02A | 23A | 0.02A | 23A | |
| INPUT WATT | 1.8W | 1.9W | 1.8W | 1.9W | 0.9W | 1W | 1.6W | 1.2W | 1.6W | 1.2W | |
| LED TYPE | 12 Red LEDs | 6 Green LEDs | 6 Red LEDs | 6 Green LEDs | 6 Red LEDs+ 6 Green LEDs | 10 Red LEDs | 8 Green LEDs | ||||
| BATTERY TYPE | Ni-cad | / | Ni-cad | / | Ni-cad | Ni-MH | NI-MH | / | NI-MH | / | |
| BATTERY CAPACITY | 1.2V 1000mAh | / | 1.2V 1000mAh | / | 1.2V 900mAh | 1.2V 1000mAh | 1.2V 1000mAh | / | 1.2V 1000mAh | / | |
| CHARGING TIME | 24 Hours | / | 24 Hours | / | 24 Hours | 24 Hours | 24 Hours | / | 24 Hours | / | |
| EMERGENCY RUN TIME | 120 Mins | / | 120 Mins | / | 120 Mins | 120 Mins | 120 Mins | / | 120 Mins | / | |
| INNER BOX SIZE | 31*20.5*6cm | 31*20.5*6cm | 30.5*19.3*6cm | 30.5*19.3*6cm | 31.5*20.7*4.2cm | 31.5*20.7*4.2cm | |||||
| 20GP | 5140pcs | 5140pcs | 6000pcs | 6000pcs | 7950pcs | 7950pcs | |||||
| 40HQ | 13050pcs | 13050pcs | 15180pcs | 15180pcs | 20160pcs | 20160pcs | |||||
