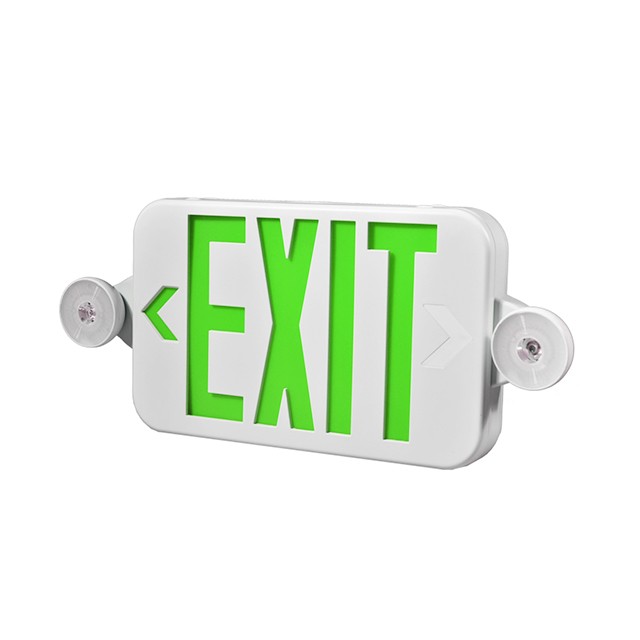

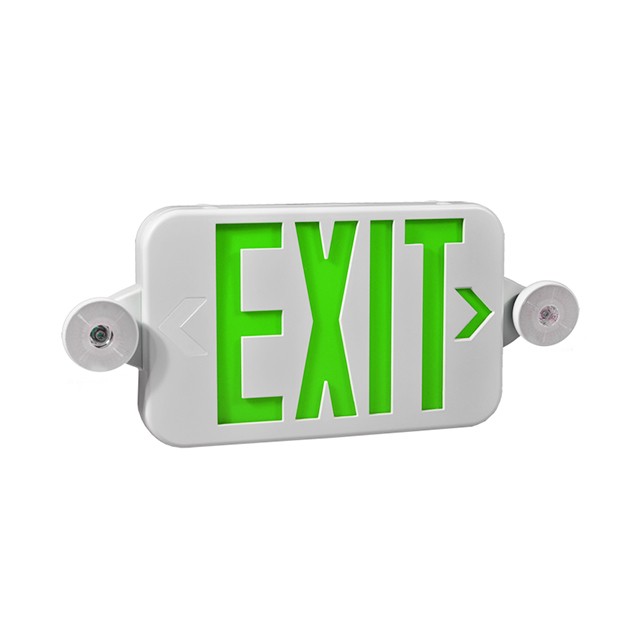

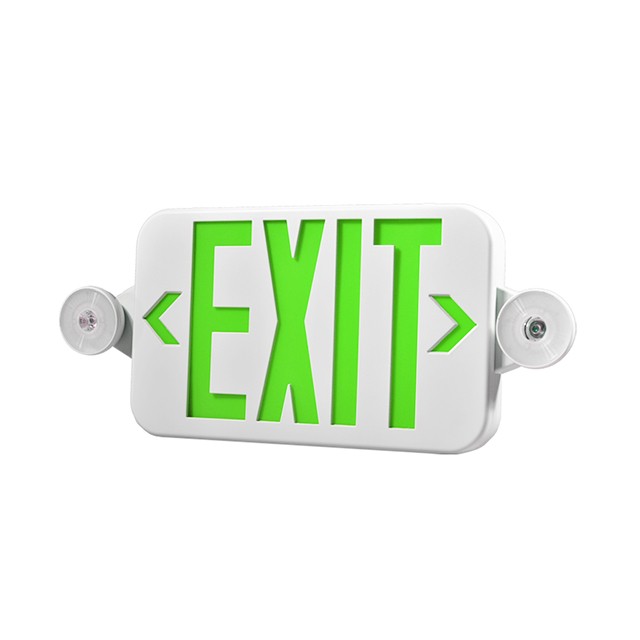

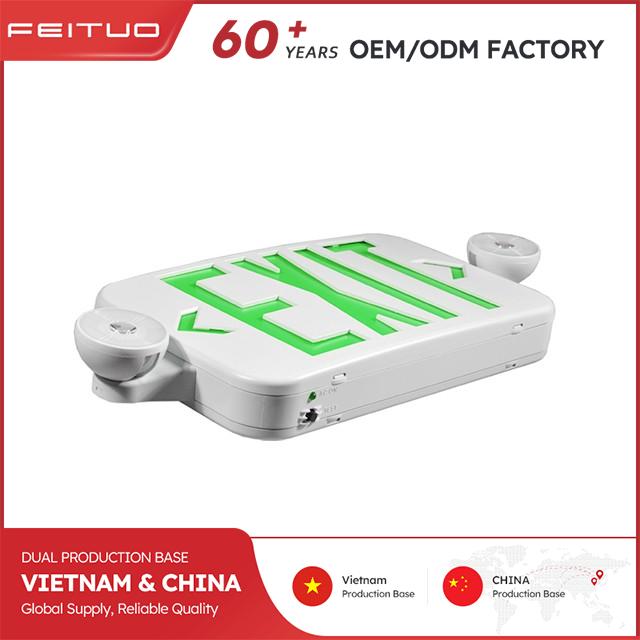

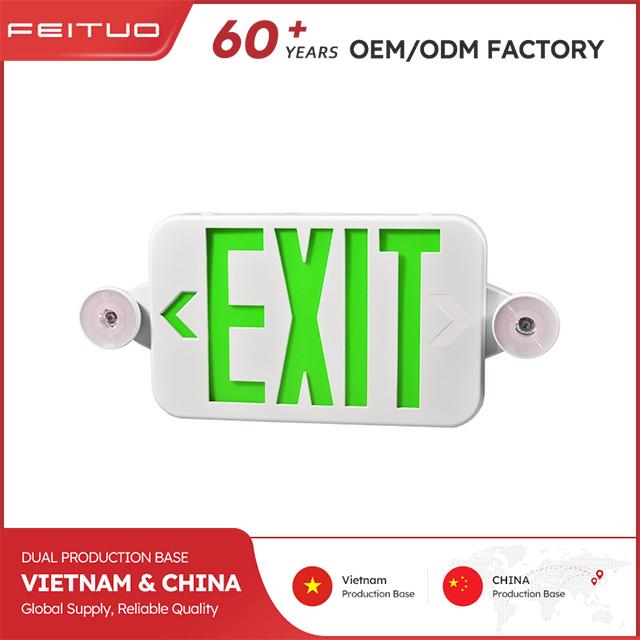

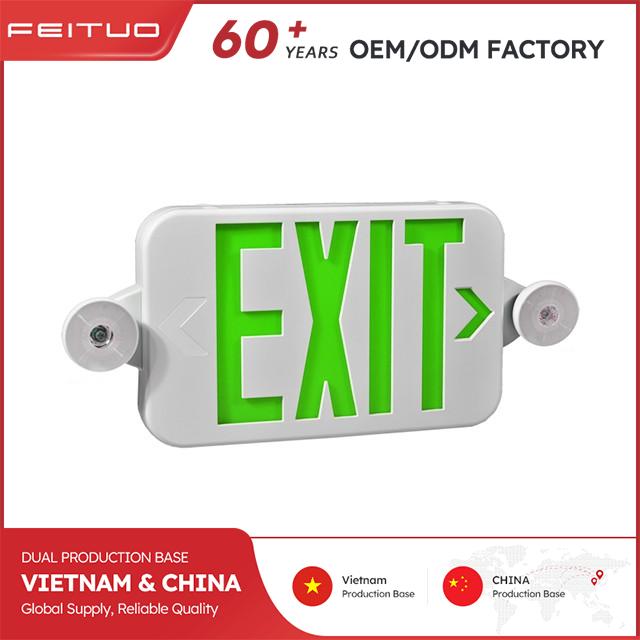

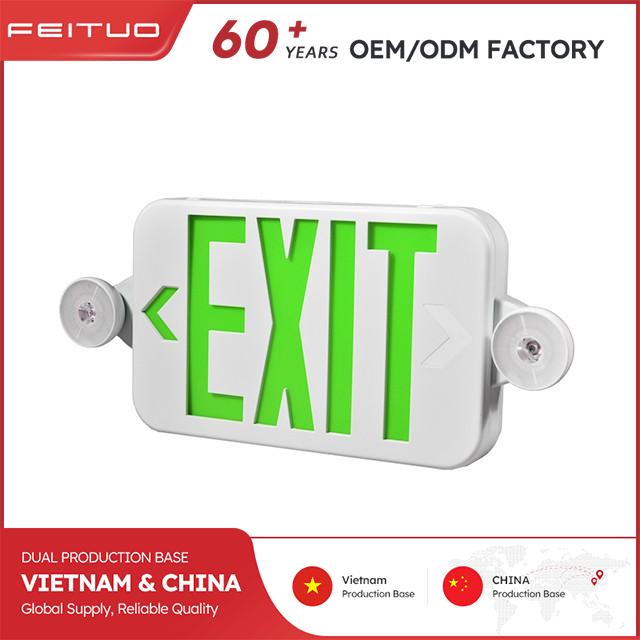

Compact ABS housing (UL 94V-0) for safety, with rapid installation. 6" illuminated letters, removable indicators, and single/double face options. Universal voltage (120V-277VAC) and emergency-ready with 2X1W SMT LED lamps. 3.6V 1000mAh Nickel cadmium battery ensures ≥90 minutes of backup, rechargeable in 24 hours. Tested for damp locations (0℃–40℃).
JLECE2GW SPEC SHEET
Features

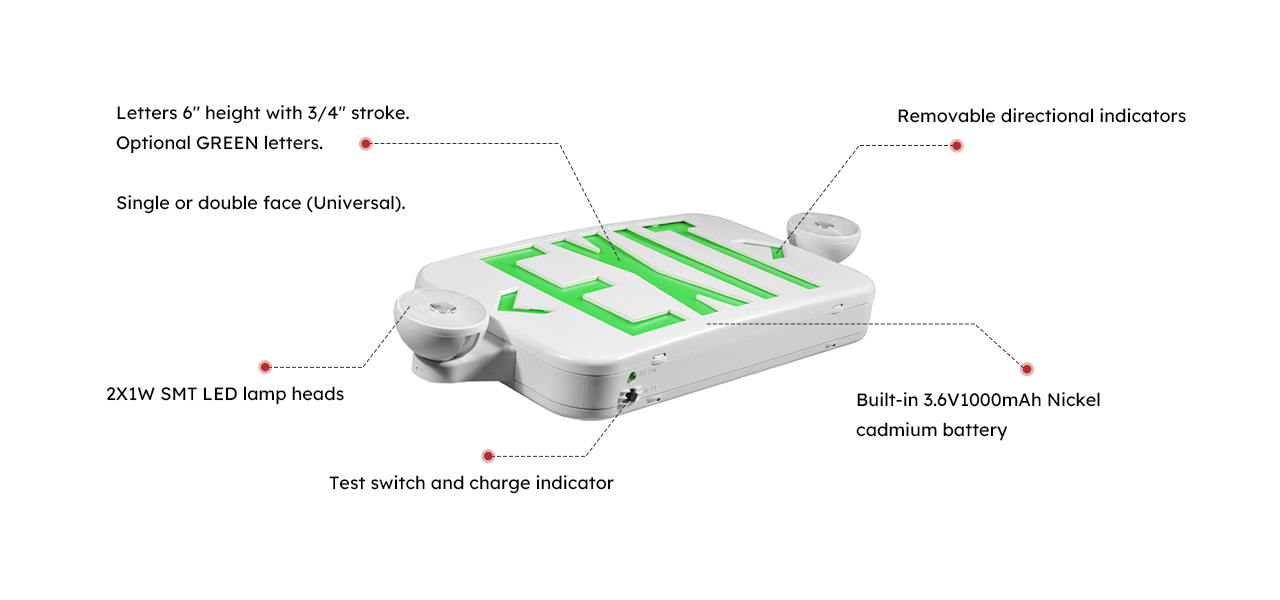

Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating.
Innovative, easy installation in minutes
Letters 6"" height with 3/4"" stroke. Optional GREEN letters.
Single or double face (Universal).
Removable directional indicators
Universal J-box mounting pattern
120V-277VAC Universal voltage operation

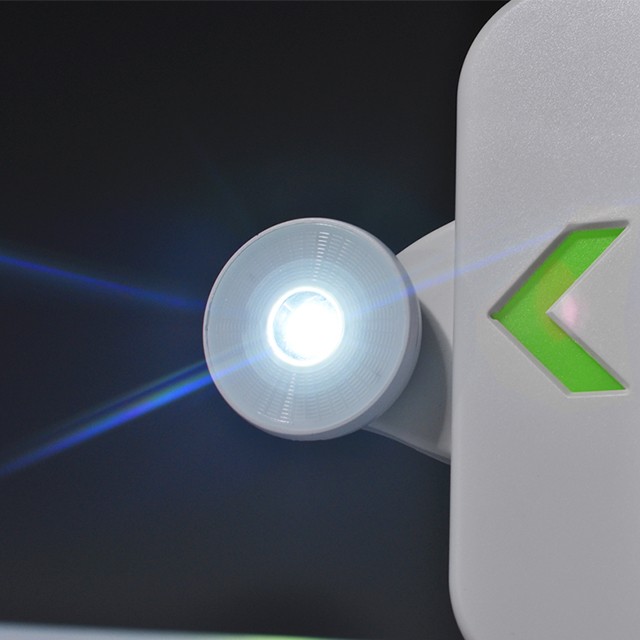

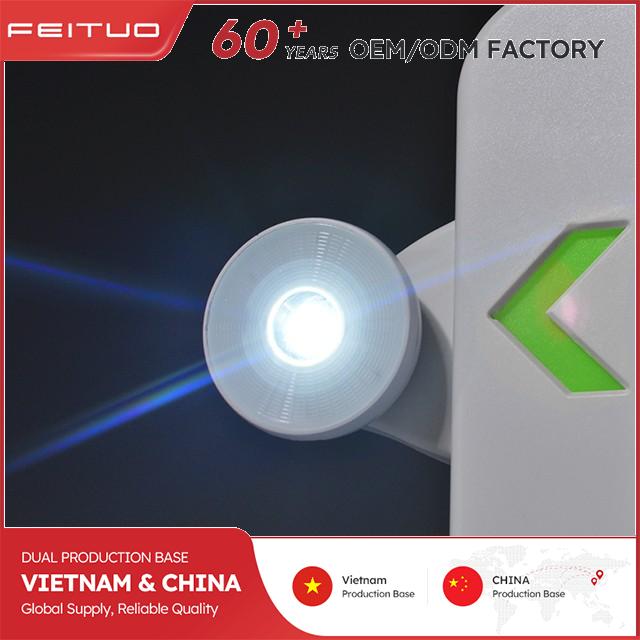

2X1W SMT LED lamp heads for emergency mode
Built-in 3.6V1000mAh Nickel cadmium battery forminimum 90 minutes emergency operation.
Maximum 24 hours for full recharge time

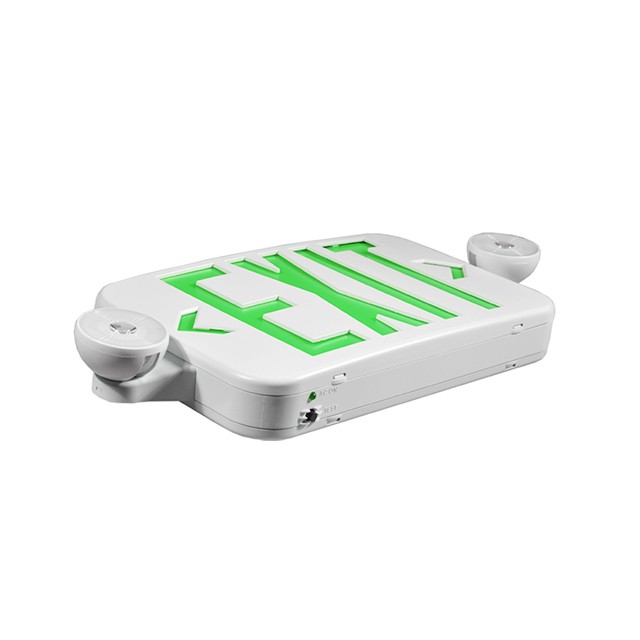

Test switch and charge indicator
UL and cULus listed
0° to 40°C indoor damp location listed
PREMIUM SAFETY
UL 94V-0 flame-rated ABS housing for reliable protection.
USER-FRIENDLY
Easy installation, removable indicators, and dual-face options.
EMERGENCY-READY
2X1W SMT LED lamp heads + 3.6V 1000mAh Nickel cadmium battery for ≥90 minutes.
WIDE VOLTAGE RANGE
Compatible with 120V-277VAC.
DURABLE PERFORMANCE
Tested for damp locations (0℃–40℃).
Specifications
| Product Name: | New Compact Green EXIT Sign/Emergency COMBO | Packing Information | |||
| Model No.: | JLECE2GW | Packing: | White box | ||
| Main Specification: | 2X1W SMT LED, 90mins, Ni-cad 3.6V 1000mAh,GREEN EXIT | Carton: | L(cm) | W(cm) | H(cm) |
| Carton Size: | 44 | 40 | 19.5 | ||
| Product Size: | Carton CBM: | 0.034M3 | |||
| MOQ: | 200PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 6PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 6.2KGS | ||
| Remarks: UL & cUL Listed | Net Weight: | 5.2KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 4853 | 10147 | 11824 | |||

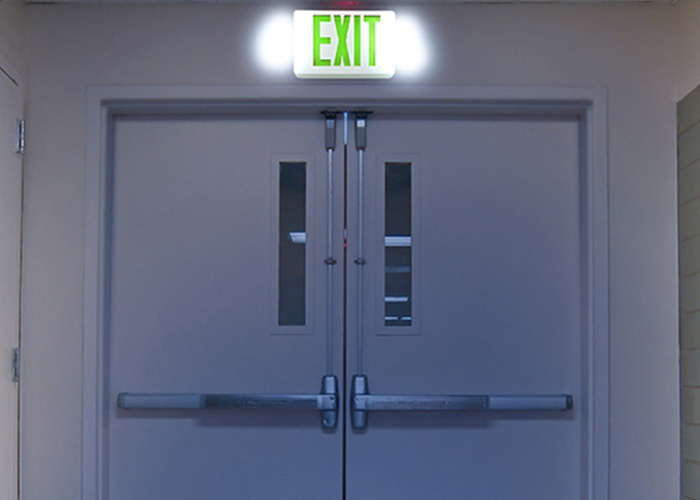

Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
Installation Video
Product Comparison
| PRICTURE |  | |  | |  |
| MODEL NO | JLEC2RW | JLEC2RWRC | JLEC2GW | JLEC2GWRC | JLEC2BCW |
| SIZE | 409*111*202mm 16.1"*4.37"*7.95" | 409*111*202mm 16.1"*4.37"*7.95" | 409*111*202mm 16.1"*4.37"*7.95" | 409*111*202mm 16.1"*4.37"*7.95" | 409*111*202mm 16.1"*4.37"*7.95" |
| LETTER SIZE | 6" | 6" | 6" | 6" | 6" |
| LETTER COLOR | Red | Red | Green | Green | Red / Green |
| RATED VOLTAGE | 120/277V | 120/277V | 120/277V | 120/277V | 120/277V |
| INPUT CURRENT | 0.07/0.05A | 0.07/0.05A | 0.07/0.05A | 0.07/0.05A | 0.031/0.016A |
| INPUT WATT | 4.2W | 4.2W | 4.2W | 4.2W | 3.5W |
| LED TYPE | (12)Red LEDs+2*12pcs 2835 SMT LED lamp | (12)Red LEDs+2*12pcs 2835 SMT LED lamp+2W LED lamps | (8)Green LEDs+2*12pcs 2835 SMT LED lamp | (8)Green LEDs+2*12pcs 2835 SMT LED lamp+2W LED lamps | (9) Red LEDs/(6) Green LEDs +2*8pcs lamp heads |
| REMOTE CAPABILITYR | / | 2W remote lamps | / | 2W remote lamps | / |
| BATTERY | Ni-cd 9.6V 600mAh | Ni-cd 9.6V 1000mAh | Ni-cd 9.6V 600mAh | Ni-cd 9.6V 1000mAh | NI-MH 3.6V, 1200mAh |
| OUTPUT Lumens | ≥220 | ≥220 | ≥220 | ≥220 | ≥300 |
| CHARGING TIME | 24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours |
| EMERGENCY RUN TIME | 120 Mins | 120 Mins | 120 Mins | 120 Mins | 120 Mins |
| INNER BOX SIZE | 49*21*12cm | 49*21*12cm | 49*21*12cm | 49*21*12cm | 49*21*12cm |
| 20GP | 2076pcs | 2076pcs | 5140pcs | 5140pcs | 5140pcs |
| 40HQ | 4787pcs | 4787pcs | 13050pcs | 13050pcs | 13050pcs |
FAQ
What is the emergency duration of your commercial exit sign with lights?
Our commercial exit sign with lights delivers a minimum 90-minute emergency lighting, equipped with UL94 V-0 flame retardant housing and reliable rechargeable backup battery.
Can your commercial exit sign with lights adapt to wide input voltage for North American buildings?
Yes, this commercial exit sign with lights supports 120-277V AC input, fully compliant with NFPA 101 standards for commercial indoor installation.
What customization options are available for bulk orders of commercial exit sign with lights?
We support single or double-sided panels, custom text and logos for commercial exit sign with lights, with flexible MOQ to match different project demands.
What certificates do you supply for commercial exit sign with lights to clear customs?
We provide complete UL and CUL certification documents for commercial exit sign with lights, helping buyers smoothly finish customs clearance in North America.
What is your production lead time for commercial exit sign with lights?
The lead time for commercial exit sign with lights is around 30-45 days after deposit confirmation, and we can arrange priority production for urgent commercial projects.
Do you offer after-sale technical support for commercial exit sign with lights?
Yes, we provide installation guides and troubleshooting support for commercial exit sign with lights, and guarantee product quality for the agreed warranty period.
