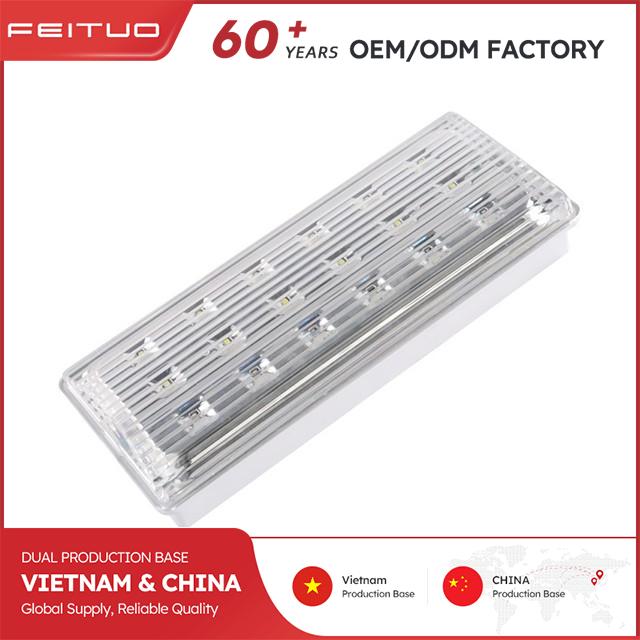

This slim 18 SMD LED emergency light combines a clear polycarbonate diffuser and ABS housing, delivering 85lm soft illumination with 18 high-efficiency LEDs. Featuring 3-hour non-maintained/maintained operation, 220-240V compatibility, and a 3.6V 1200mAh Ni-Cad battery (24hr charge), it supports optional multi-directional labels for confined-space safety solutions.
Features
New slim type emergency light
Clear polycarbonate diffuser & ABS housing
18pcs powerful LED for enhanced lumen output
3hours non-maintained or maintained operation
Optional multi directional sticker legend kit
SLIM & ADAPTIVE
1.5W ultra-thin profile ideal for low ceilings, paired with customizable directional labels for multi-angle visibility.
DUAL-MODE EFFICIENCY
3-hour non-maintained/maintained operation balances energy use and readiness, extending battery lifecycle.
GENTLE CLARITY
18 SMD LEDs with polycarbonate diffusion ensure glare-free 85lm output, critical for panic-free evacuation.
QUICK CUSTOMIZATION
Interchangeable sticker legends adapt to complex layouts (e.g., stairwells, narrow corridors).
Specifications
| Product Name: | 18 SMD LED Emergency Light | Packing Information | |||
| Model No.: | LE506L-18LED | Packing: | Color box | ||
| Main Specification: | 18SMD LEDs, 3.6V 1200mAh Ni-Cad battery, Non-maintained | Carton: | L(cm) | W(cm) | H(cm) |
| Carton Size: | 35 | 28 | 23 | ||
| Product Size: | 27x10x5.7cm | Carton CBM: | 0.023M3 | ||
| MOQ: | 1000PCS | Q'TY/INNER BOX: | PCS | ||
| Lead Time: | 35 days | Q'TY/CTN: | 12PCS | ||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 7KGS | ||
| Remarks: | Net Weight: | 6KGS | |||
| Container Loading Q'TY (PCS): | 1*20' | 1*40' | 1*40' HQ | ||
| 14348 | 30000 | 34957 | |||
| Mode of operation | Non-maintained | Voltage | 220-240V 50-60Hz |
| Power | 1.5W | Output Voltage | 3.6V |
| Output Power | 1.2W | Lumen Output | 85lm |
| Battery | 3.6V 1200mAh Ni-Cad battery | Max Charge Current(mA) | 75mA |
| Max Discharge Current(mA) | 350mA | Charging Time | 24H |
| Discharging Time | 3H | Lamp | SMD3528 18pcs LED |
| IP Grade | IP20 |
Applications
Hospital
Hotel
Mall
Office Building
Outdoor
Parking Lot
Restaurant
Station
Supermarket
